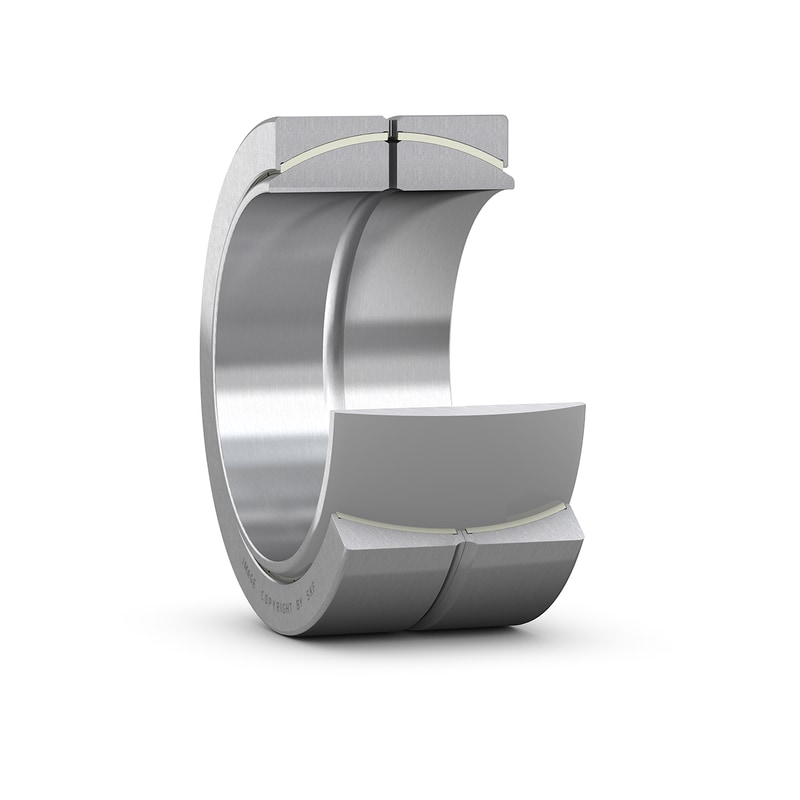

These radial spherical plain bearings have a steel/PTFE FRP sliding contact surface combination. They are factory greased and maintenance-free. However, relubrication can extend bearing service life and can be applied via lubrication holes and an annular groove in both rings. Compared to the GEC design (axially split outer ring), the GEP design (radially split) has a wider and larger outside diameter for a given shaft size. This results in a higher basic load rating, but a smaller tilt angle.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE FRP
|
| Material, inner ring |
Bearing steel
|
| Sealing |
Without
|
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
150 mm
|
Outside diameter |
| B |
71 mm
|
Width |
| C |
67 mm
|
Width outer ring |
| α |
2 °
|
Angle of tilt |
| dk |
135 mm
|
Raceway diameter inner ring |
| b |
7.5 mm
|
Width annular lubrication groove at outer ring |
| b1 |
7.5 mm
|
Width annular lubrication groove at inner ring |
| M |
4 mm
|
Diameter lubrication hole (outer ring) |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
| r2 |
min. 1 mm
|
Chamfer dimension outer ring |
| da |
min. 107 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 114 mm
|
Abutment diameter shaft |
| Da |
min. 125.6 mm
|
Abutment diameter housing |
| Da |
max. 141.9 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius shaft |
| rb |
max. 1 mm
|
Fillet radius housing |
| Basic dynamic load rating | C |
600 kN
|
|---|---|---|
| Basic static load rating | C0 |
900 kN
|
| Specific dynamic load factor | K |
80 N/mm²
|
| Specific static load factor | K0 |
120 N/mm²
|
| Material constant | KM |
1 055
|
| Mass plain bearing |
4.51 kg
|
