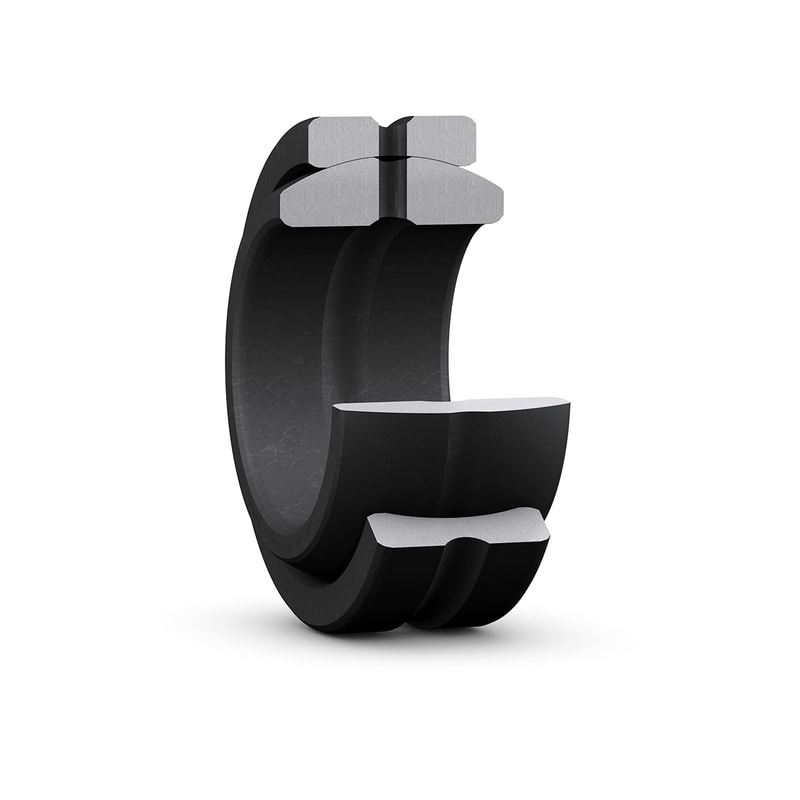

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Without
|
| d |
160 mm
|
Bore diameter |
|---|---|---|
| D |
230 mm
|
Outside diameter |
| B |
105 mm
|
Width |
| C |
80 mm
|
Width outer ring |
| α |
8 °
|
Angle of tilt |
| dk |
200 mm
|
Raceway diameter inner ring |
| b |
13.5 mm
|
Width annular lubrication groove at outer ring |
| b1 |
13.5 mm
|
Width annular lubrication groove at inner ring |
| M |
6 mm
|
Diameter lubrication hole (outer ring) |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
| r2 |
min. 1 mm
|
Chamfer dimension outer ring |
| da |
min. 169.5 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 170 mm
|
Abutment diameter shaft |
| Da |
min. 190 mm
|
Abutment diameter housing |
| Da |
max. 222 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius shaft |
| rb |
max. 1 mm
|
Fillet radius housing |
| Basic dynamic load rating | C |
1 370 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 800 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Specific static load factor | K0 |
500 N/mm²
|
| Material constant | KM |
330
|
| Mass plain bearing |
14 kg
|
