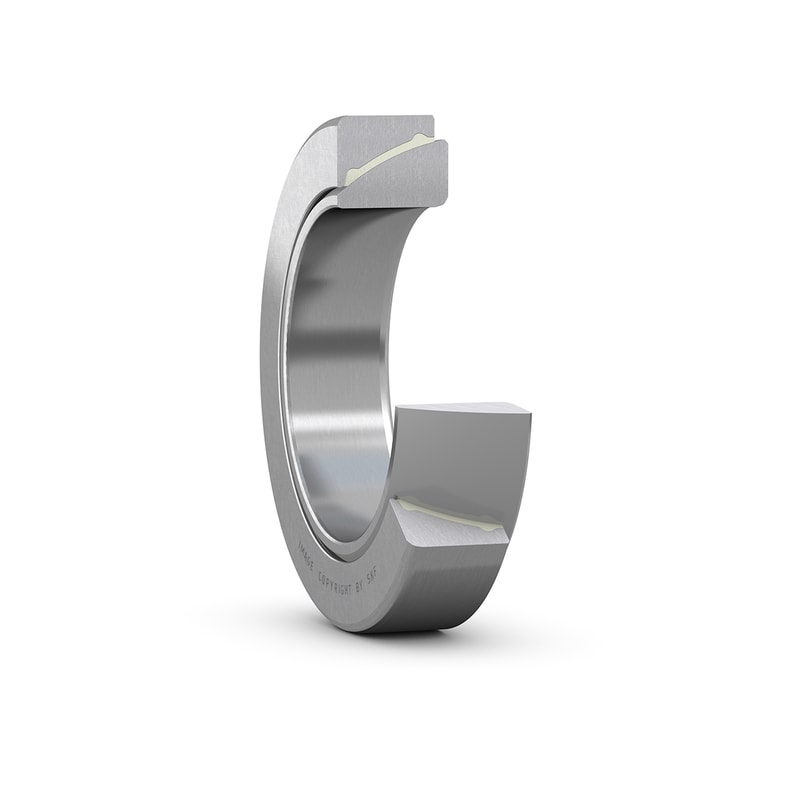

Angular contact spherical plain bearings are designed to accommodate combined radial and axial loads. Single bearings can accommodate axial loads acting in one direction. This specific design includes a steel/PTFE FRP sliding contact surface combination that is maintenance-free. However, relubrication, which can be applied from both sides, can extend bearing service life.
| Sliding contact surface combination |
Steel/PTFE FRP
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Relubrication feature |
Without
|
| Sealing |
Without
|
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
180 mm
|
Outside diameter |
| T |
38 mm
|
Width |
| α |
0.7 °
|
Angle of tilt |
| dk |
168 mm
|
Raceway diameter inner ring |
| B |
38 mm
|
Width inner ring |
| C |
37 mm
|
Width outer ring |
| r1 |
min. 2.5 mm
|
Chamfer dimension bore/large side face |
| r2 |
min. 0.6 mm
|
Chamfer dimension bore/small side face |
| s |
14.5 mm
|
Distance sphere diameter centre – large inner ring side face |
| da |
max. 134 mm
|
Abutment diameter shaft, small inner ring side face |
|---|---|---|
| db |
max. 155 mm
|
Abutment diameter shaft, large inner ring side face |
| Da |
min. 140 mm
|
Abutment diameter housing, large outer ring side face |
| Db |
min. 169 mm
|
Abutment diameter housing, small outer ring side face |
| ra |
max. 2.5 mm
|
Fillet radius shaft, housing |
| Basic dynamic load rating | C |
260 kN
|
|---|---|---|
| Basic static load rating | C0 |
415 kN
|
| Specific dynamic load factor | K |
50 N/mm²
|
| Specific static load factor | K0 |
80 N/mm²
|
| Material constant | KM |
480
|
| Mass plain bearing |
4 kg
|
