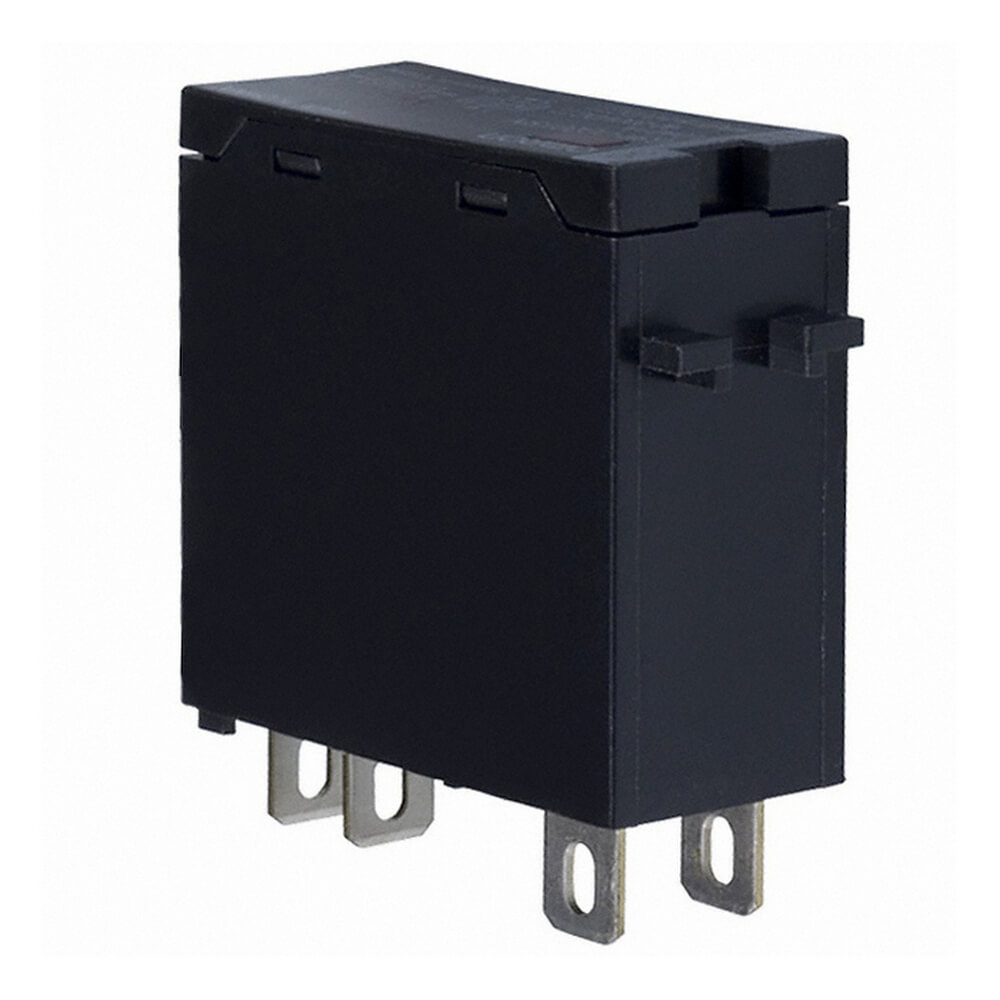

G3R-IDZR1SN-UTU 12-24VDC

Application	Interface
Number of phases	1
Mounting method	With plug-in socket
Terminal	Plug-in
Complete with socket	❌
LED indicator	❌
Rated operational voltage, DC	4-32 V
Operating voltage range, DC	4-32 V
Rated operation current Ie at AC-1	0.1 A
Product Height (unpacked)	29 mm
Product Width (unpacked)	13 mm
Product Depth (unpacked)	28 mm
Supply voltage DC	4-6 V
Control current max.	8 mA
Must operate voltage max.	6.6 V
Must release voltage min.	3.6 V
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Isolation	Photocoupler
