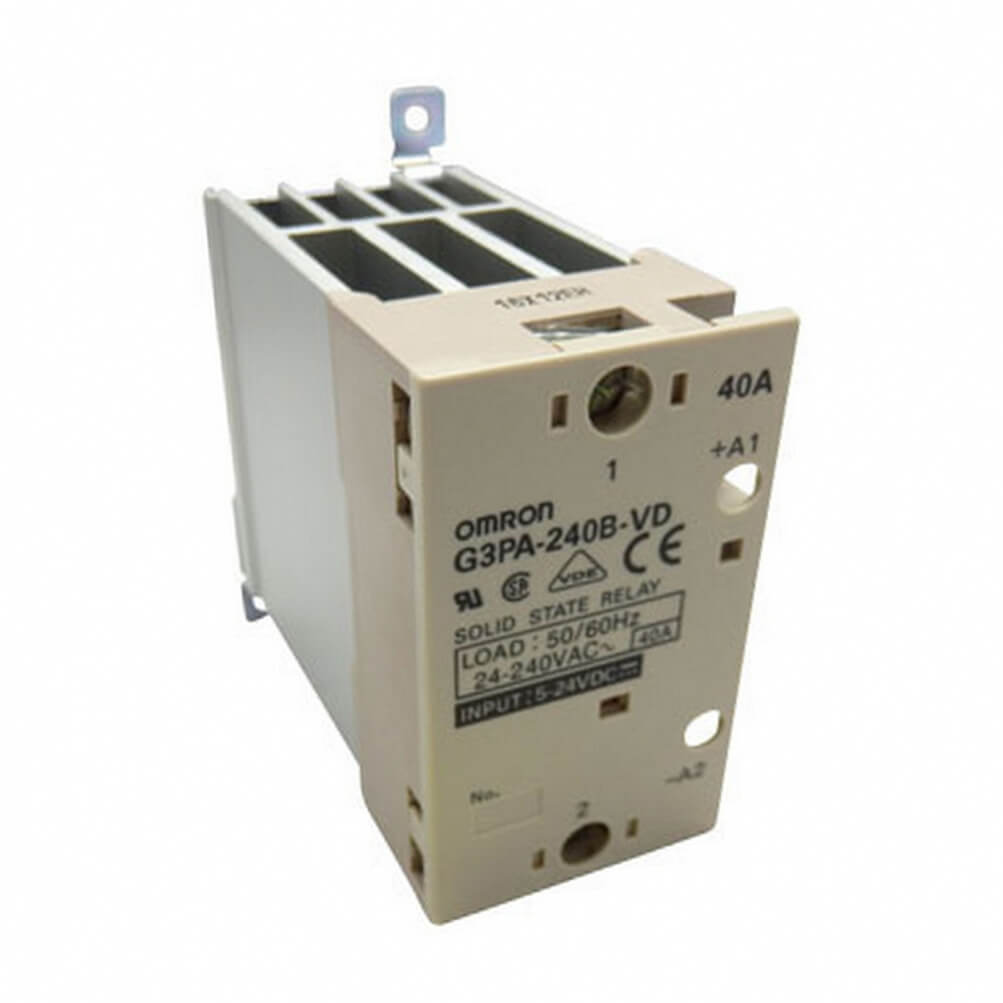

Solid state relay, DIN rail/surface mounting, 1-pole, 40 A, 264 VAC max
| Application | ON/OFF control |
| Number of phases | 1 |
| Number of poles | 1 |
| Mounting method | DIN rail |
| Terminal | Screw |
| LED indicator | ❌ |
| Rated operational voltage, AC | 24-240 V |
| Operating voltage range, AC | 19-264 V |
| Rated operation current Ie at AC-1 | 40 A |
| Rated load current Close mounting | 36 A |
| Permissible I²t value | 1260 A²s |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 47 mm |
| Product Depth (unpacked) | 100 mm |
| Supply voltage DC | 5-24 V |
| Control current max. | 7 mA |
| Must operate voltage max. | 4 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
| Switching at zero-crossing | ✔️ |
