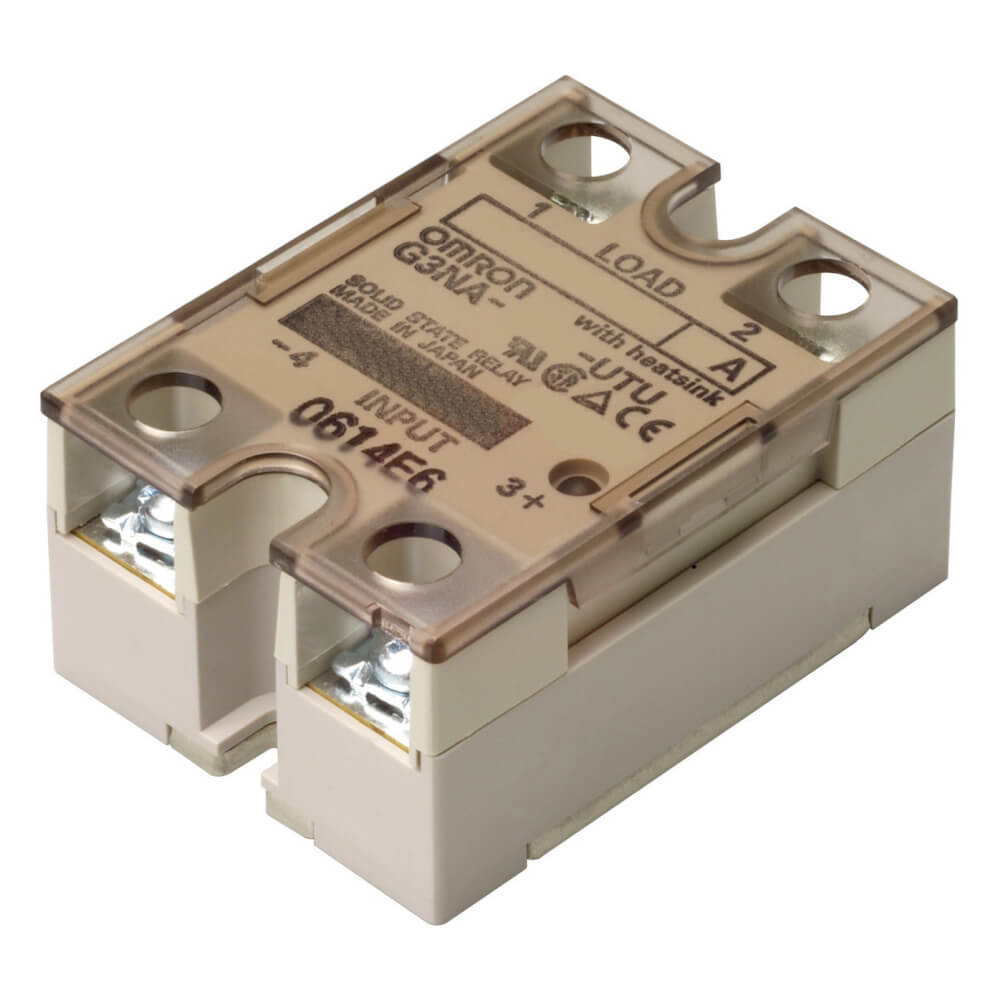

Solid state relay, surface mounting, zero crossing, 1-pole, 25 A, 200 to 480 VAC
| Application | ON/OFF control |
| Number of phases | 1 |
| Mounting method | DIN rail/screw |
| Terminal | Screw |
| LED indicator | ❌ |
| Rated operational voltage, AC | 200-480 V |
| Operating voltage range, AC | 180-528 V |
| Rated operation current Ie at AC-1 | 4 A |
| Product Height (unpacked) | 58 mm |
| Product Width (unpacked) | 43 mm |
| Product Depth (unpacked) | 27 mm |
| Supply voltage AC | 100-240 V |
| Must operate voltage max. | 75 V |
| Must release voltage min. | 20 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Switching at zero-crossing | ✔️ |
Datasheet
EN PDF
Solid state relay, surface mounting, zero crossing, 1-pole, 75 A, 24 to 240 VAC
Solid state relay, surface mounting, zero crossing, 1-pole, 50 A, 200 to 480 VAC
Solid state relay, surface mounting, zero crossing, 1-pole, 25 A, 200 to 480 VAC
Solid state relay, surface mounting, zero crossing, 1-pole, 20 A, 24 to 240 VAC
