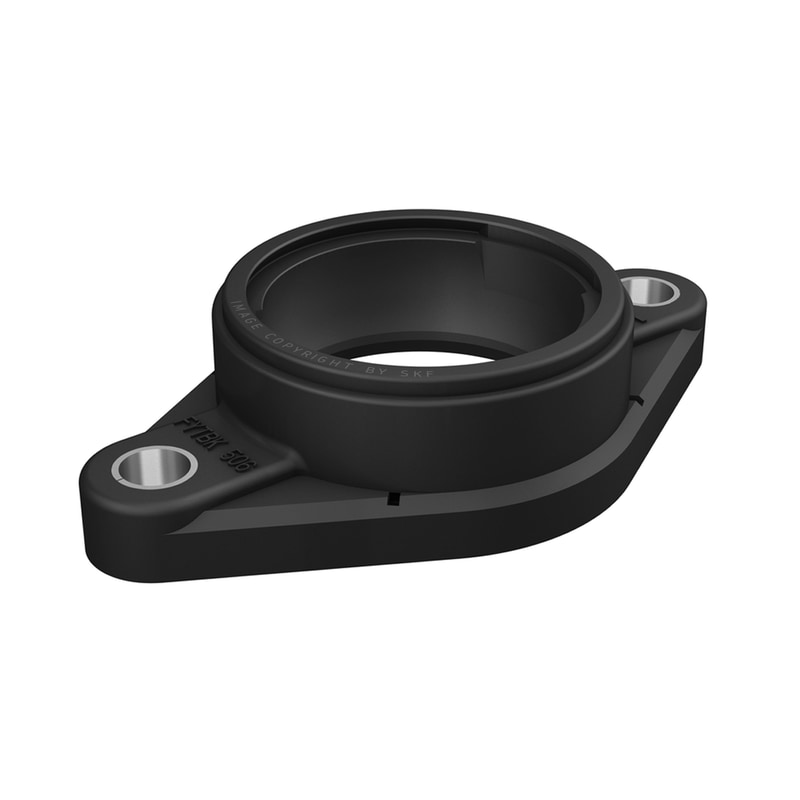

These oval flanged housings for insert bearings are made of composite material and are chemical resistant, lightweight and strong. These housings have been developed for bearing arrangements that must operate reliably in difficult environments for extended periods without maintenance.
| Material |
Composite
|
| Da |
72 mm
|
Diameter of spherical seat |
|---|---|---|
| Db |
90 mm
|
Top external diameter |
| Dc |
88.9 mm
|
Centering diameter |
| A |
35 mm
|
Overall width |
| A1 |
17 mm
|
Flange width |
| A2 |
21 mm
|
Axial position of spherical seat (from support surface) |
| A3 |
3.2 mm
|
Depth of centring recess |
| A5 |
24 mm
|
Standout of end cover |
| H |
156 mm
|
Overall height |
| J |
130 mm
|
Distance between attachment bolts |
| L |
96 mm
|
Overall length |
| N |
14.8 mm
|
Diameter of attachment bolt hole |
| Mass housing |
0.18 kg
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
