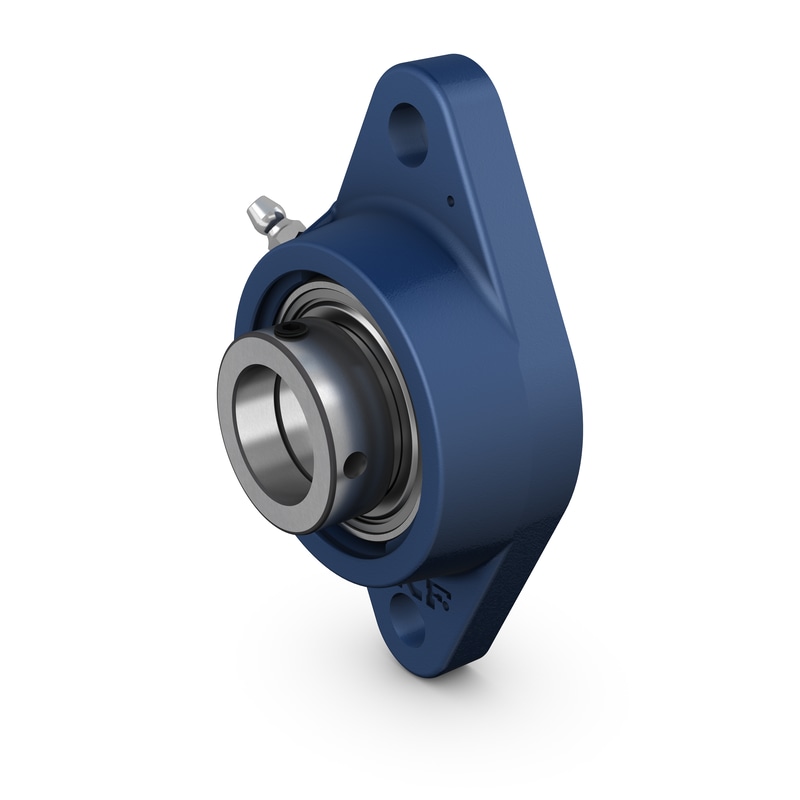

These oval flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with a narrow inner ring and eccentric locking, and are intended primarily for use in applications where the direction of rotation is constant. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Compliance with standard |
ISO
|
| Purpose specific |
For material handling applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
40 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 51.8 mm
|
Outer diameter of inner ring |
| d2 |
56.5 mm
|
Outside diameter of locking ring |
| A |
38.5 mm
|
Overall width |
| A1 |
14 mm
|
Flange width |
| A3 |
3.2 mm
|
Depth of centring recess |
| A5 |
26 mm
|
Width including end cover |
| B |
29.7 mm
|
Width of inner ring |
| B1 |
43.2 mm
|
Overall bearing width |
| B4 |
6.75 mm
|
Distance from locking device side face to thread centre |
| Db1 |
98 mm
|
Top external diameter |
| Db2 |
102 mm
|
Base external diameter |
| Dc |
88.9 mm
|
Diameter of housing centering recess |
| H |
171.5 mm
|
Overall height |
| J |
143.5 mm
|
Distance between attachment bolts |
| L |
102 mm
|
Overall length |
| N |
14 mm
|
Diameter of attachment bolt hole |
| s1 |
32.7 mm
|
Distance from locking device side face to raceway centre |
| T |
56.7 mm
|
Overall unit width |
| RG |
1/4-28 UNF
|
Housing thread for grease fitting |
|---|---|---|
| R1 |
24.5 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
7 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/4-28 SAE-LT
|
Thread of grease fitting |
| J6 |
115.5 mm
|
Distance of dowel pins |
|---|---|---|
| J7 |
16 mm
|
Axial offset of dowel pins |
| N4 |
2 mm
|
Recommended diameter for dowel pins |
| Basic dynamic load rating | C |
30.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 kN
|
| Fatigue load limit | Pu |
0.8 kN
|
| Limiting speed |
4 800 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.55 kg
|
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw |
5 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
