FYAWK 50 LTHRThree-bolt bracket flanged ball bearing unit with set screw locking and extended inner ring, composite housing, Food Line

FYAWK 50 LTHRThree-bolt bracket flanged ball bearing unit with set screw locking and extended inner ring, composite housing, Food Line

SKU: FYAWK 50 LTHRThree-bolt bracket flanged ball bearing unit with set screw locking and extended inner ring, composite housing, Food Line

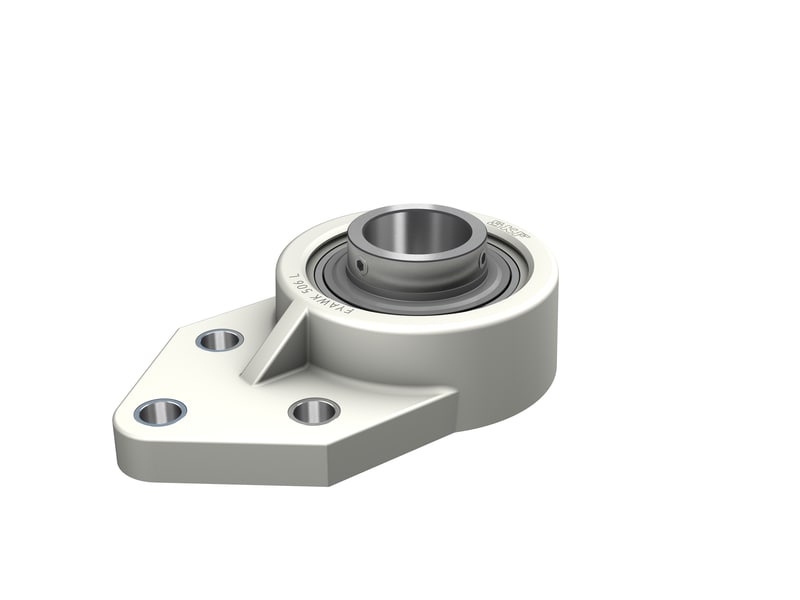

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The bearing unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

ID:117698

Technical Data
Reviews (0)

Compliance with standard	ISO with boundary dimension deviations
Purpose specific	For food and beverage applications
Material, housing	Composite for the SKF Food Line
Sealing, bearing	Seal and flinger on both sides
Sealing type, bearing	Contact, multiple
Sealing, unit	Optional end cover
Coating	Without

Dimensions

d	50 mm	Bore diameter
d₁	≈ 62.51 mm	Outer diameter of inner ring
H_a	6 mm	Groove height for backseal
A	39 mm	Overall width
A₁	20 mm	Flange width
A₅	43 mm	Standout of end cover
B	51.6 mm	Width of inner ring
B₄	9 mm	Distance from locking device side face to thread centre
J	60 mm	Distance between attachment bolt holes
J₁	46 mm	Distance between attachment bolt holes
H	185 mm	Overall height
H₁	68 mm	Radial position of the spherical seat
L	112 mm	Overall length
L₁	100 mm	Flange length
N	14 mm	Diameter of attachment bolt hole
s₁	32.6 mm	Distance from locking device side face to raceway centre
T	56.6 mm	Overall unit width

Calculation data

Basic dynamic load rating	C	29.6 kN
Basic static load rating	C₀	23.2 kN
Fatigue load limit	P_u	0.98 kN
Limiting speed		2 200 r/min
		Limiting speed with shaft tolerance h6

Mass

Mass bearing unit

1.15 kg

Mounting information

Set screw	G₂	M10x1
Hexagonal key size for set screw		5 mm
Recommended tightening torque for set screw		16.5 N·m
Recommended diameter for attachment bolts, mm	G	12 mm
Recommended diameter for attachment bolts, inch	G	0.5 in
