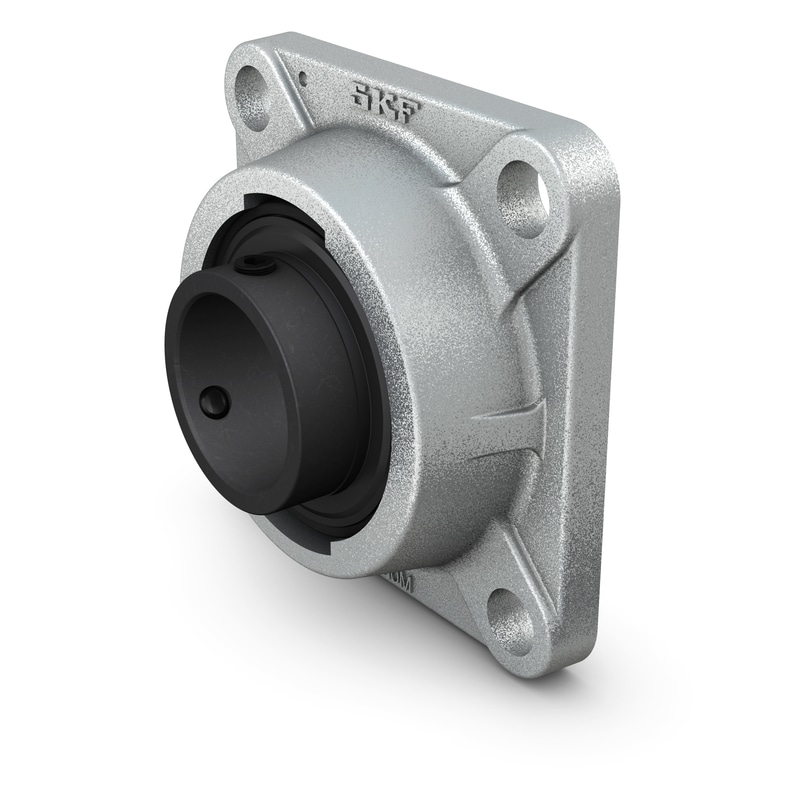

These square flanged ball bearing units are designed for high temperature applications and are compliant with ISO standards. They consist of a high temperature insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Running in required |
Yes
|
| d |
45 mm
|
Shaft diameter |
|---|---|---|
| d1 |
≈ 56.8 mm
|
Shoulder diameter inner ring |
| A |
39 mm
|
Height housing |
| A1 |
14 mm
|
Step height |
| B |
49.2 mm
|
Width inner ring |
| B4 |
8 mm
|
Distance from locking device side face to thread centre |
| Db1 |
100 mm
|
Top external diameter |
| Db2 |
112 mm
|
Base external diameter |
| J |
105 mm
|
Distance between attachment bolts |
| L |
137 mm
|
Overall width |
| N |
16 mm
|
Hole diameter |
| s1 |
30.2 mm
|
Distance from locking device side face to raceway centre |
| T |
54.2 mm
|
Overall height |
| Basic dynamic load rating | C |
33.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
21.6 kN
|
| Limiting speed |
60 r/min
|
|
| Operating temperature | T |
max. 250 °C
|
| Mass bearing unit |
2 kg
|
| Set screw | G2 |
M8x1
|
|---|---|---|
| Hexagonal key size for set screw |
4 mm
|
|
| Recommended tightening torque for set screw |
6.5 N·m
|
|
| Attachment bolts, recommended metric size | G |
20 mm
|
| Attachment bolts, recommended inch size | G |
0.75 in
|
