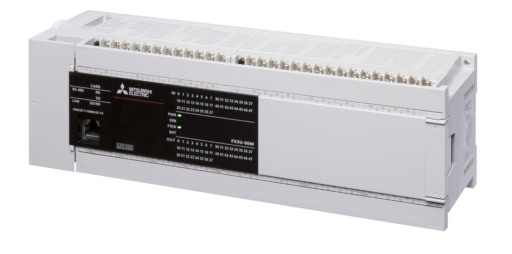

| Type | FX5U |
|---|---|
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 40 |
| Integrated Digital Outputs | 40 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 45 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Width (mm) | 285 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 1,2 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
| Cardboard (g) | 242 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 1 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Regulations | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
