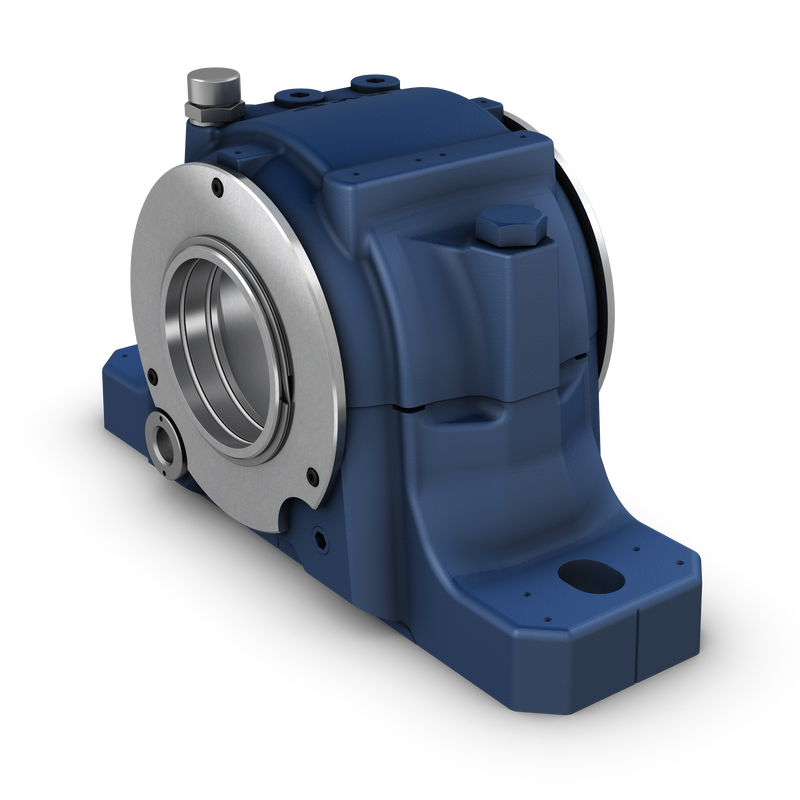

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
60 mm
|
Shaft diameter |
|---|---|---|
| Ca |
58 mm
|
Width of bearing seat |
| Da |
140 mm
|
Diameter of bearing seat |
| A1 |
90 mm
|
Foot width |
| A2 |
141 mm
|
Width across oil seals |
| H |
177 mm
|
Height |
| H1 |
95 mm
|
Centre height of bearing seat |
| H2 |
32 mm
|
Foot height |
| J |
260 mm
|
Distance between attachment bolts |
| J1 |
50 mm
|
Axial distance between attachment bolts |
| L |
315 mm
|
Length |
| N |
24 mm
|
Length of attachment bolt hole |
| N1 |
18 mm
|
Width of attachment bolt hole |
| J6 |
288 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| P0° |
350 kN
|
Breaking load |
|---|---|---|
| P55° |
430 kN
|
Breaking load |
| P90° |
260 kN
|
Breaking load |
| P120° |
190 kN
|
Breaking load |
| P150° |
175 kN
|
Breaking load |
| P180° |
215 kN
|
Breaking load |
| Pa |
140 kN
|
Breaking load |
| Q120° |
220 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
125 kN
|
Load carrying ability of cap bolts |
| Q180° |
110 kN
|
Load carrying ability 0f cap bolts |
| Mass housing |
9.5 kg
|
| Size of cap bolt |
M 12×70
|
|
| Recommended tightening torque for cap bolts |
80 N·m
|
|
| Recommended diameter for attachment bolts | G |
16 mm
|
| Recommended tightening torque for attachment bolts |
200 N·m
|
|
| Oil level |
min. 36 mm
|
|
| Oil level |
max. 44 mm
|
