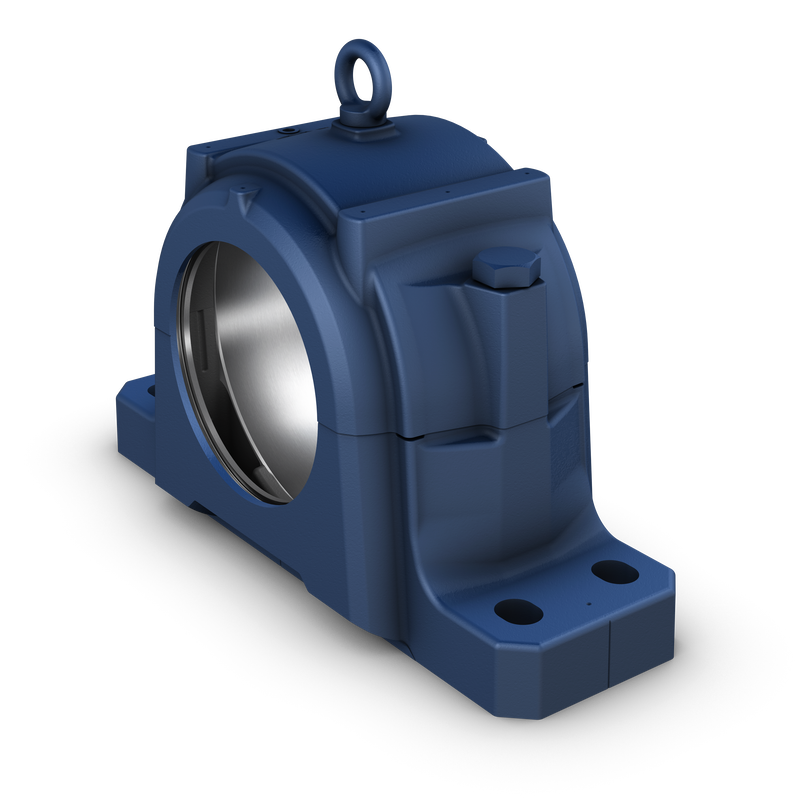

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
130 mm
|
Shaft diameter |
|---|---|---|
| db |
145 mm
|
Shaft diameter |
| Ca |
90 mm
|
Width of bearing seat |
| Da |
230 mm
|
Diameter of bearing seat |
| Db |
167.5 mm
|
Bore diameter |
| A |
190 mm
|
Width |
| A1 |
130 mm
|
Foot width |
| H |
290 mm
|
Height |
| H1 |
150 mm
|
Centre height of bearing seat |
| H2 |
50 mm
|
Foot height |
| J |
380 mm
|
Distance between attachment bolts |
| J1 |
70 mm
|
Axial distance between attachment bolts |
| L |
445 mm
|
Length |
| N |
28 mm
|
Length of attachment bolt hole |
| N1 |
22 mm
|
Width of attachment bolt hole |
| J6 |
414 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 12 mm
|
Diameter of dowel pins |
| A2L |
208 mm
|
Width across labyrinth seals |
|---|---|---|
| A2T |
277 mm
|
Width across taconite seals |
| d2 |
239 mm
|
Diameter of taconite seal |
| P0° |
900 kN
|
Breaking load |
|---|---|---|
| P55° |
900 kN
|
Breaking load |
| P90° |
540 kN
|
Breaking load |
| P120° |
410 kN
|
Breaking load |
| P150° |
360 kN
|
Breaking load |
| P180° |
450 kN
|
Breaking load |
| Pa |
295 kN
|
Breaking load |
| Q120° |
900 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
520 kN
|
Load carrying ability of cap bolts |
| Q180° |
450 kN
|
Load carrying ability of cap bolts |
| Mass housing |
33 kg
|
| Size of cap bolt |
M 24×130
|
|
| Recommended tightening torque for cap bolts |
350 N·m
|
|
| Recommended diameter for attachment bolts | G |
20 mm
|
| Recommended tightening torque for attachment bolts |
385 N·m
|
|
| Initial grease fill, 20% |
700 g
|
|
| Initial grease fill, 40% |
1 100 g
|
|
| Size of eye bolt |
M 10
|
