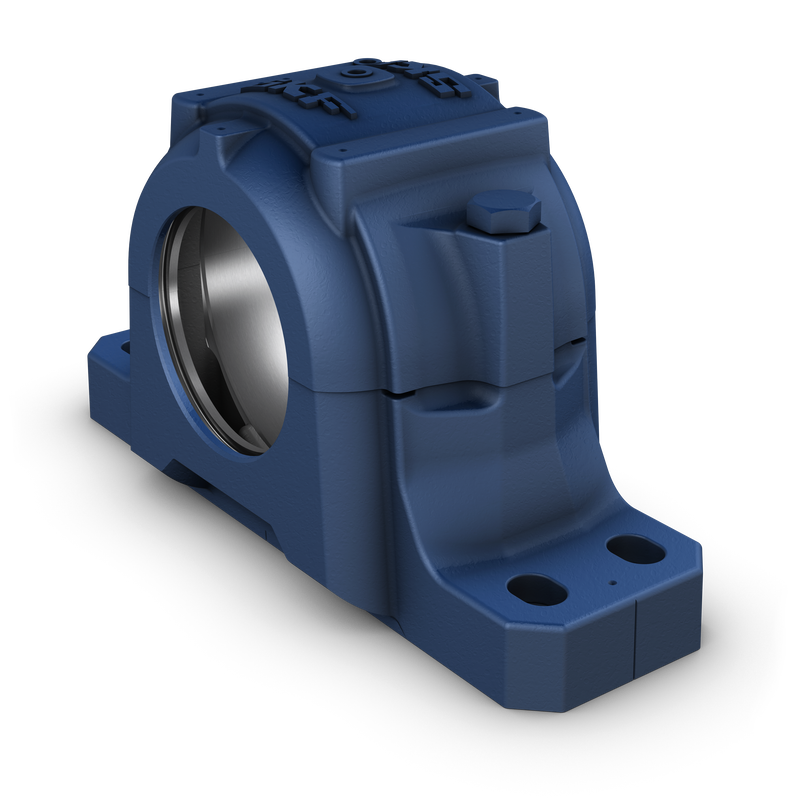

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.</s
| da |
87.313 mm
|
Shaft diameter |
|---|---|---|
| Ca |
70 mm
|
Width of bearing seat |
| Da |
180 mm
|
Diameter of bearing seat |
| Db |
137.5 mm
|
Bore diameter |
| A |
160 mm
|
Width |
| A1 |
110 mm
|
Foot width |
| H |
218 mm
|
Height |
| H1 |
112 mm
|
Centre height of bearing seat |
| H2 |
40 mm
|
Foot height |
| J |
320 mm
|
Distance between attachment bolts |
| J1 |
60 mm
|
Axial distance between attachment bolts |
| L |
380 mm
|
Length |
| N |
24 mm
|
Length of attachment bolt hole |
| N1 |
18 mm
|
Width of attachment bolt hole |
| J6 |
348 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| A2L |
178 mm
|
Width across labyrinth seals |
|---|
| P0° |
470 kN
|
Breaking load |
|---|---|---|
| P55° |
620 kN
|
Breaking load |
| P90° |
370 kN
|
Breaking load |
| P120° |
280 kN
|
Breaking load |
| P150° |
250 kN
|
Breaking load |
| P180° |
310 kN
|
Breaking load |
| Pa |
200 kN
|
Breaking load |
| Q120° |
620 kN
|
Load carrying ability of cap bolts |
|---|---|---|
| Q150° |
360 kN
|
Load carrying ability of cap bolts |
| Q180° |
310 kN
|
Load carrying ability of cap bolts |
| Size of cap bolt |
M 20×100
|
|
| Recommended tightening torque for cap bolts |
200 N·m
|
|
| Recommended diameter for attachment bolts | G |
16 mm
|
| Recommended tightening torque for attachment bolts |
200 N·m
|
|
| Initial grease fill, 20% |
390 g
|
|
| Initial grease fill, 40% |
630 g
|
