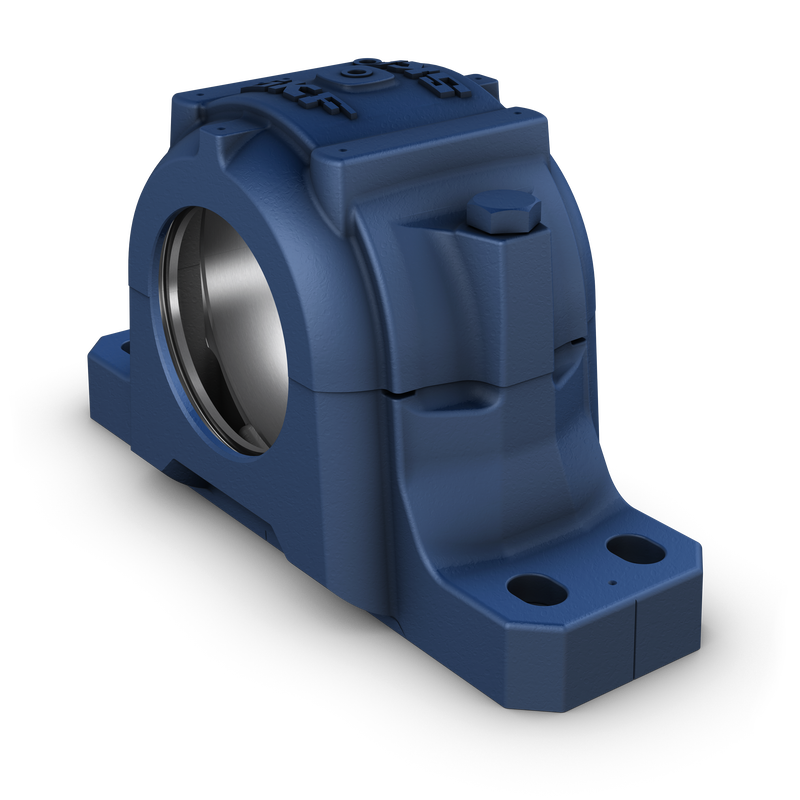

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
| Da |
140 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
58 mm
|
Width of bearing seat |
| H1 |
95 mm
|
Centre height of bearing seat |
| Db |
108 mm
|
Bore diameter |
|---|---|---|
| A |
120 mm
|
Overall width |
| A1 |
90 mm
|
Foot width |
| G1 |
1/8-27 NPSF
|
Thread of relubrication holes |
| H |
177 mm
|
Overall height |
| H2 |
32 mm
|
Foot height |
| L |
315 mm
|
Overall length |
| J |
260 mm
|
Distance between attachment bolts |
| J1 |
50 mm
|
Axial distance between attachment bolts |
| N |
24 mm
|
Length of attachment bolt hole |
| N1 |
18 mm
|
Width of attachment bolt hole |
| A3 |
93 mm
|
Inside width between seal grooves |
|---|---|---|
| A4 |
5 mm
|
Width of seal groove |
| A5 |
9 mm
|
Distance to seal groove back face |
| A6 |
13 mm
|
Width at bore diameter |
| Dc |
116.5 mm
|
Diameter of seal groove |
| J6 |
288 mm
|
Distance between dowel pins |
|---|---|---|
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| P0° |
350 kN
|
Breaking load at 0° load angle |
|---|---|---|
| P55° |
430 kN
|
Breaking load at 55° load angle |
| P90° |
260 kN
|
Breaking load at 90° load angle |
| P120° |
190 kN
|
Breaking load at 120° load angle |
| P150° |
175 kN
|
Breaking load at 150° load angle |
| P180° |
215 kN
|
Breaking load at 180° load angle |
| Pa |
140 kN
|
Breaking load, axial |
| Q120° |
220 kN
|
Load to reach yield point at 120° load angle |
|---|---|---|
| Q150° |
125 kN
|
Load to reach yield point at 150° load angle |
| Q180° |
110 kN
|
Load to reach yield point at 180° load angle |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
9 kg
|
| Recommended diameter of attachment bolts | G |
16 mm
|
|---|---|---|
| Recommended tightening torque for attachment bolts |
200 N·m
|
|
| Size of cap bolts |
M12x70
|
|
| Tightening torque for cap bolts |
80 N·m
|
|
| Initial grease fill, 20% |
170 g
|
|
| Initial grease fill, 40% |
280 g
|
