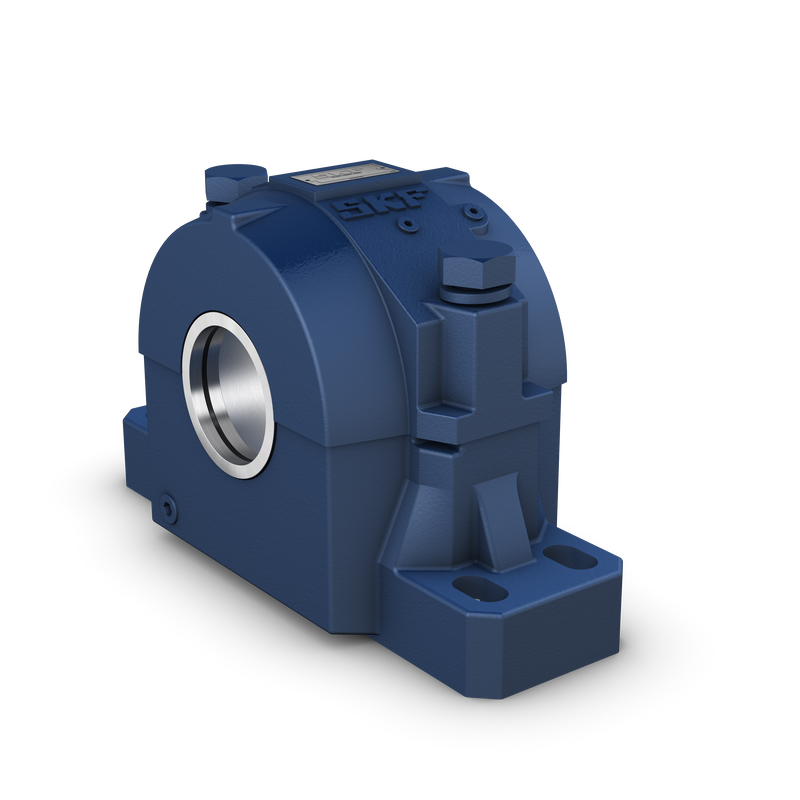

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
| da |
68.263 mm
|
Shaft diameter |
|---|
| Da |
170 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
67.793 mm
|
Width of bearing seat |
| H1 |
107.95 mm
|
Centre height |
| A1 |
98.425 mm
|
Foot width |
|---|---|---|
| A2 |
165.1 mm
|
Overall width |
| H |
209.55 mm
|
Overall height |
| H2 |
44.45 mm
|
Foot height |
| J |
min. 269.875 mm
|
Distance between attachment bolts |
| J |
max. 320.675 mm
|
Distance between attachment bolts |
| J1 |
53.975 mm
|
Distance between attachment bolts, axial |
| L |
361.95 mm
|
Overall length |
| N1 |
19.05 mm
|
Width of attachment bolt hole |
| R1 |
63.5 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
26.988 mm
|
Height of drain plug position |
| RG |
3/8-18 NPT
|
Thread of drain hole |
| PG |
1/8-27 NPT
|
Thread of grease fitting in cap |
| P60° |
92.5 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90° |
55.6 kN
|
Safe load at 90° load angle |
| P120° |
33.8 kN
|
Safe load at 120° load angle |
| P150° |
30.7 kN
|
Safe load at 150° load angle |
| P180° |
36.9 kN
|
Safe load at 180° load angle |
| Pa |
24 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
24 kg
|
| Cap bolt |
3/4-10 UNC x 4-1/4
|
|
| Number of cap bolts |
2
|
|
| SAE grade of cap bolt |
8
|
|
| Recommended tightening torque for cap bolts |
515.211 N·m
|
|
| Recommended diameter for attachment bolts | G |
15.875 mm
|
| Width of included locating ring |
9.728 mm
|
