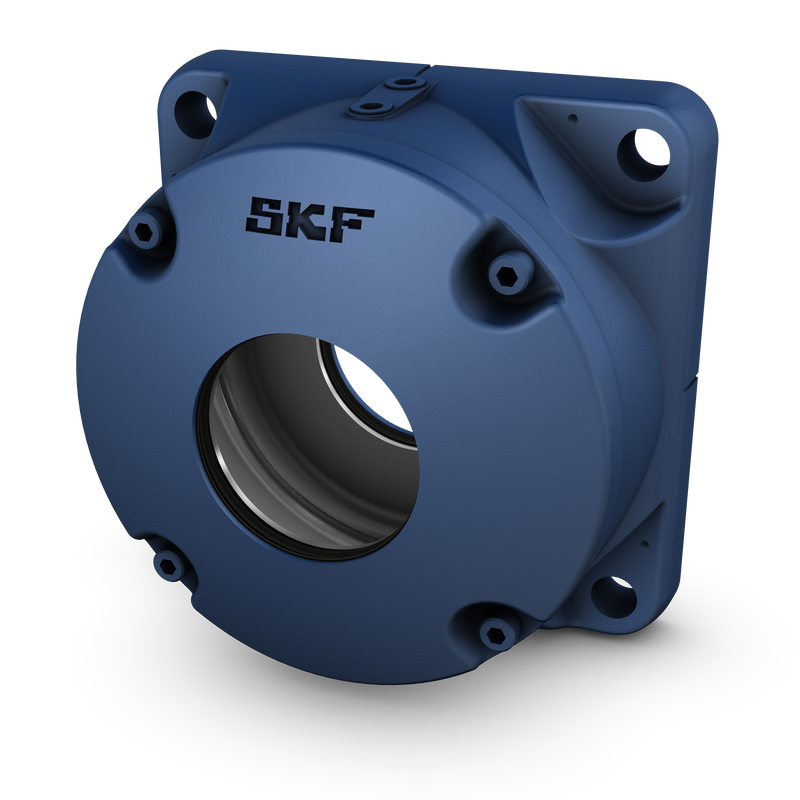

The combination of SKF housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. SKF has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications. The bearings reflect SKF’s state-of-the-art technology, providing the highest-quality bearings. You need to buy each part in the combination separately.
| da |
100 mm
|
Shaft diameter |
|---|---|---|
| Ca |
63 mm
|
Width of bearing seat |
| Da |
200 mm
|
Diameter of bearing seat |
| A |
98 mm
|
Width |
| A1 |
30 mm
|
Width of flange |
| AB |
137 mm
|
Width |
| Ba |
30 mm
|
Distance bearing side face to support surface |
| D |
244 mm
|
Outside diameter of housing cover |
| H |
270 mm
|
Height |
| H1 |
135 mm
|
Centre height of bearing seat |
| J |
219 mm
|
Distance between or pitch diameter of attachment bolts |
| L |
270 mm
|
Length |
| N |
22 mm
|
Diameter of attachment bolt hole |
| J5 |
122 mm
|
Position of dowel pin |
|---|---|---|
| J6 |
78 mm
|
Position of dowel pin |
| N4 |
max. 8 mm
|
Diameter of dowel pins |
| P1 |
190 kN
|
Breaking load |
|---|---|---|
| P2 |
200 kN
|
Breaking load |
| P3 |
640 kN
|
Breaking load |
| Mass housing |
23.5 kg
|
| Size of cover bolt |
M 10×30
|
|
| Recommended tightening torque for cap bolts |
47 N·m
|
|
| Recommended diameter for attachment bolts | G |
20 mm
|
| Recommended tightening torque for attachment bolts |
385 N·m
|
|
| Initial grease fill, 20% |
420 g
|
|
| Initial grease fill, 40% |
650 g
|
