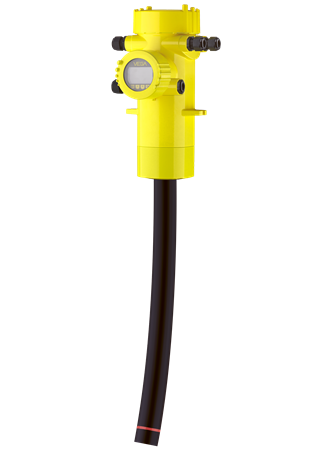

FIBERTRAC 31

FIBERTRAC 31

Application area

The flexible detector is used on round vessels and vessels with conical outlet and is suitable for measurement of liquids, solids, slurries and suspensions. Due to its thin, flexible scintillator cross-section, FIBERTRAC 31 can be easily adapted to round vessels.

The FIBERTRAC 31 is a radiation-based sensor with flexible plastic sensing element for continuous measurement of liquids and bulk solids. It is suitable for level measurement under extreme process temperatures, in case of critical product features or aggressive products. The FIBERTRAC 31 delivers precise measuring results even under hardest application conditions.

Your benefit

Simple mounting on round and conical vessels through flexible detector
High plant availability through non-contact measurement
Cost saving through use of only one sensor up to 7 m measuring range

SKU: FIBERTRAC 31

Technical specifications

Measuring range – Distance	7 m [Meter – Foot]
Process temperature	– [°C – °F]
Process pressure	– [Bar – kPa – psi]
Accuracy	± 0.5 %
Density	Density
Materials, wetted parts	No wetted material
Threaded connection	Mounting from outside via supplied mounting brackets
Seal material	no media contact
Housing material	Aluminium Stainless steel (precision casting)
Protection rating	IP66/IP67
Output	Profibus PA Foundation Fieldbus 4 … 20 mA/HART – four-wire
Ambient temperature	-20 … 50 °C

Approvals

Scope	ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India KTL Korea
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d” Dust explosion protection through housing “t”
Overfill protection	WHG
SIL qualification	SIL2

Display & adjustment

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM) Bluetooth
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
