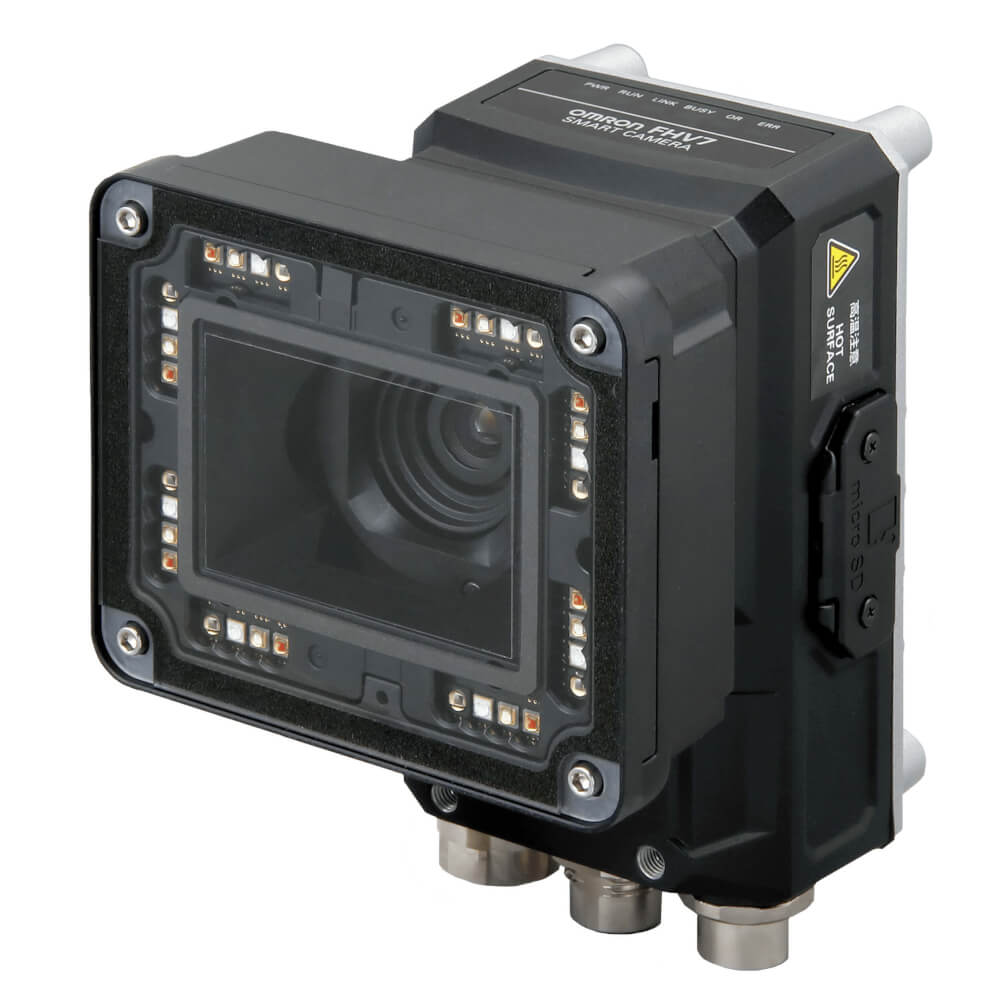

FH Vision Smart Camera, high performance, color type, 6.3 Mpix resolution, 2.4 µm pixel size, 1/1.8″ chip size, rolling shutter, motorized lens module, focal length 12 mm, multi color illuminator, 24 VDC, IP40, pre-assembled, W10 IoT 64bit
| Number of pixels | 6.3 MP |
| Camera with lens | ✔️ |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, PROFINET Slave, Serial RS-232C |
| Communication option(s) | EtherCAT Slave |
| Focal length | 12 mm |
| Focus distance | 60-1000 mm |
| Autofocus | ✔️ |
| Camera family | FHV |
| Camera type | Color |
| Frame rate | 59 fps |
| Illumination | Multi-coloured LED |
| Image width | 3072 pixels |
| Image height | 2048 pixels |
| Pixel size | 2.4 µm |
| Shutter type | Rolling |
| Image sensor format | 1/1.8″ |
| Image sensor type | Other |
| Lens mount | Other |
| Lens type | Motorized |
| Optics class | N/A |
| Degree of protection (IP) | IP67 |
| Application | 2D Robot guidance, Bead inspection, Code reading, Color inspection, Counting, Defect inspection, Measurement inspection, OCR / OCV, Presence / Absence |
 |
FHV-SDU30 | FHV7 extended data unit, EtherCAT interface |
|
Datasheet
EN PDF
FH Vision Smart Camera, high performance, color type, 1.6 Mpix resolution, 3.45 µm pixel size, 1/2.9" chip size, global shutter, high speed liquid lens module, focal length 6mm, multi color illuminator 24 VDC, IP67, pre-assembled
FH Vision Smart Camera, high performance, color type, 0.4 Mpix resolution, 6.9 µm pixel size, 1/2.9" chip size, global shutter, high speed liquid lens module, focal length 19mm, 24 VDC, IP40, pre-assembled
FH Vision Smart Camera, high performance, color type, 0.4 Mpix resolution, 6.9 µm pixel size, 1/2.9" chip size, global shutter, motorized lens module, focal length 25 mm, multi color illuminator, 24 VDC, IP67, pre-assembled
FH Vision Smart Camera, high performance, color type, 1.6 Mpix resolution, 3.45 µm pixel size, 1/2.9" chip size, global shutter, high speed liquid lens module, focal length 6mm, 24 VDC, IP40, pre-assembled
