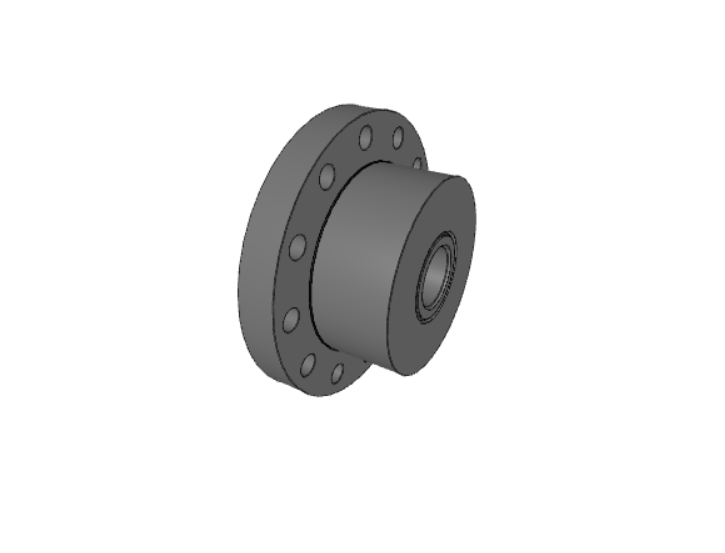

| d |
25 mm
|
Bore diameter |
|---|---|---|
| H |
120 mm
|
Height |
| A |
52 mm
|
Overall height |
| A1 |
50.26 mm
|
Distance over distance ring side faces |
| A2 |
32 mm
|
Distance flange position from side face |
| A3 |
15 mm
|
Flange width |
| d1 |
34 mm
|
Shoulder diameter of laminar ring |
| D1 |
88 mm
|
Cartridge outside diameter at flange side |
| D2 |
80 mm
|
Cartridge outside diameter at housing seat |
| D3 |
36 mm
|
Lock nut innner diameter |
| Basic dynamic load rating | C |
22.4 kN
|
|---|---|---|
| Basic static load rating | C0 |
52 kN
|
| Fatigue load limit | Pu |
1.93 kN
|
| Attainable speed for preload class A |
7 200 r/min
|
|
| Attainable speed for preload class B |
3 600 r/min
|
|
| Contact angle | α |
62 °
|
| Preload class A |
1 580 N
|
|
| Preload class B |
3 160 N
|
|
| Frictional moment for preload class A |
0.069 N·m
|
|
| Frictional moment for preload class B |
0.12 N·m
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
725 N/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
925 N/µm
|
| Mass cartridge unit |
2.3 kg
|
| Through hole diameter for attachment bolts | N |
9.2 mm
|
|---|---|---|
| Pitch diameter of attachment bolt holes | J |
102 mm
|
| Cartridge half diameter without flange | J1 |
44 mm
|
