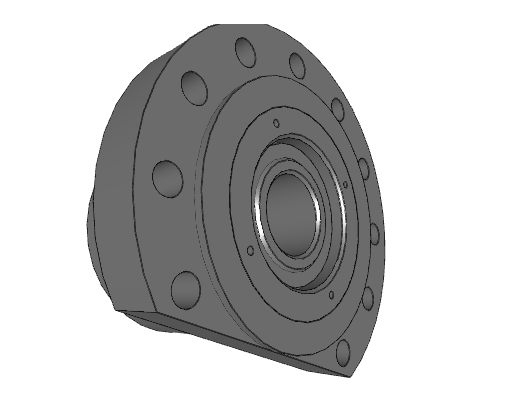

| d |
20 mm
|
Bore diameter |
|---|---|---|
| H |
90 mm
|
Height |
| A |
47 mm
|
Overall height |
| A1 |
44.26 mm
|
Distance over distance ring side faces |
| A2 |
32 mm
|
Distance flange position from side face |
| A3 |
13 mm
|
Flange width |
| d1 |
26 mm
|
Shoulder diameter of laminar ring |
| D1 |
64 mm
|
Cartridge outside diameter at flange side |
| D2 |
60 mm
|
Cartridge outside diameter at housing seat |
| D3 |
36 mm
|
Lock nut innner diameter |
| Basic dynamic load rating | C |
22 kN
|
|---|---|---|
| Basic static load rating | C0 |
49 kN
|
| Fatigue load limit | Pu |
1.8 kN
|
| Attainable speed for preload class A |
7 600 r/min
|
|
| Attainable speed for preload class B |
3 800 r/min
|
|
| Contact angle | α |
62 °
|
| Preload class A |
1 480 N
|
|
| Preload class B |
2 960 N
|
|
| Frictional moment for preload class A |
0.05 N·m
|
|
| Frictional moment for preload class B |
0.091 N·m
|
|
| Axial stiffness for preload A (sets of two brgs back-to-back or face-to-face) |
680 N/µm
|
|
| Axial stiffness for preload B (sets of two brgs back-to-back or face-to-face) |
860 N/µm
|
| Mass cartridge unit |
1.1 kg
|
| Through hole diameter for attachment bolts | N |
6.6 mm
|
|---|---|---|
| Pitch diameter of attachment bolt holes | J |
76 mm
|
| Cartridge half diameter without flange | J1 |
32 mm
|
