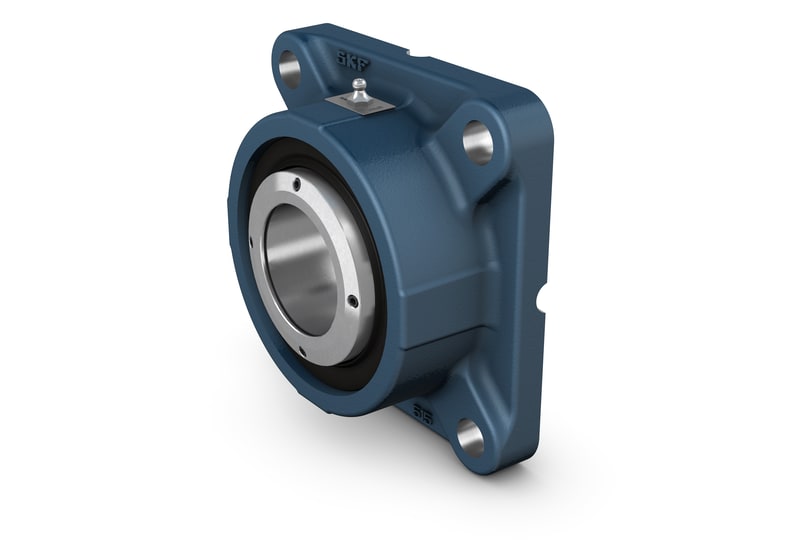

Square flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.
| Metric/inch series |
Inch
|
| Bearing insert |
Spherical roller bearing
|
| Bearing position |
Locating
|
| Locking method |
SKF ConCentra
|
| Bearing housing seal type |
Labyrinth seal
|
| da |
76.2 mm
|
Shaft diameter |
|---|---|---|
| d2 |
100.99 mm
|
Collar outer diameter |
| A |
69.85 mm
|
Housing width |
| A1 |
26.988 mm
|
Flange thickness |
| A2 |
38.1 mm
|
Machined face to centre line bearing |
| A5 |
111.125 mm
|
Total width incl. end cover |
| B |
71.438 mm
|
Inner ring width |
| J |
152.4 mm
|
Bolt distance or pitch diameter |
| L |
193.675 mm
|
Housing length |
| N |
20.638 mm
|
Bolt hole diameter |
| s |
35.719 mm
|
Inner ring centre to end |
| S |
0.794 mm
|
Centre line of locating support |
| T |
73.422 mm
|
Total width |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
|---|
| Basic dynamic load rating | C |
212 kN
|
|---|---|---|
| Basic static load rating | C0 |
240 kN
|
| Fatigue load limit | Pu |
26.5 kN
|
| Limiting speed |
4 800 r/min
|
|
| Limiting value | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
| Bearing mean diameter | dm |
102.616 mm
|
| Axial holding force of the locking mechanism | Pa |
20 kN
|
| Mass bearing unit |
8.21 kg
|
| Attachment bolt diameter | G |
0.75 in
|
|---|---|---|
| Set screws |
M6-1 x 16mm
|
|
| Number of set screws |
5
|
|
| Tightening torque for set screws |
7.909 N·m
|
|
| Grease quantity for relubrication |
8 g
|
