F4BC 40M-CPSS-DFHSquare flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

F4BC 40M-CPSS-DFHSquare flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

SKU: F4BC 40M-CPSS-DFHSquare flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

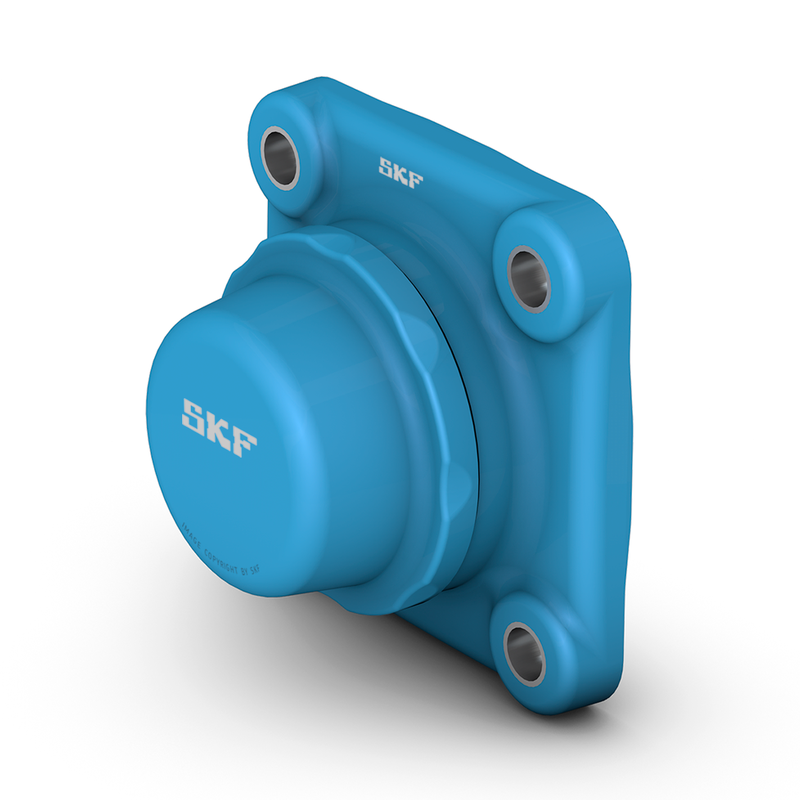

These square flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

ID:116869

Technical Data
Reviews (0)

Compliance with standard	Not standardized
Purpose specific	For food and beverage applications
Material, housing	Composite for the SKF Food Line
Sealing, bearing	Seal on both sides and flinger on one side
Sealing type, bearing	Contact, gutter
Sealing, unit	End cover and back seal
Coating	Without

Dimensions

d	40 mm	Bore diameter
d₁	≈ 51.8 mm	Outer diameter of inner ring
A	38 mm	Overall width
A₁	17 mm	Flange width
A₅	67.9 mm	Standout of end cover
B	40.7 mm	Width of inner ring
B₁	40.7 mm	Overall bearing width
B₄	10 mm	Distance from locking device side face to thread centre
D_b	93 mm	Top external diameter
D_c	88 mm	Diameter of housing centering recess
H_a	6 mm	Depth of housing centering recess
J	102 mm	Distance between attachment bolts
L	135 mm	Overall length
N	14.2 mm	Diameter of attachment bolt hole
s₁	30.2 mm	Distance from locking device side face to raceway centre
T	50.9 mm	Overall unit width

Calculation data

Basic dynamic load rating	C	24.7 kN
Basic static load rating	C₀	19 kN
Fatigue load limit	P_u	0.8 kN
Limiting speed		500 r/min

Mass

Mass bearing unit

0.91 kg

Mounting information

Set screw	G₂	M8x1
Hexagonal key size for set screw		4 mm
Recommended tightening torque for set screw		6.5 N·m
Recommended diameter for attachment bolts, mm	G	12 mm
Recommended diameter for attachment bolts, inch	G	0.5 in
