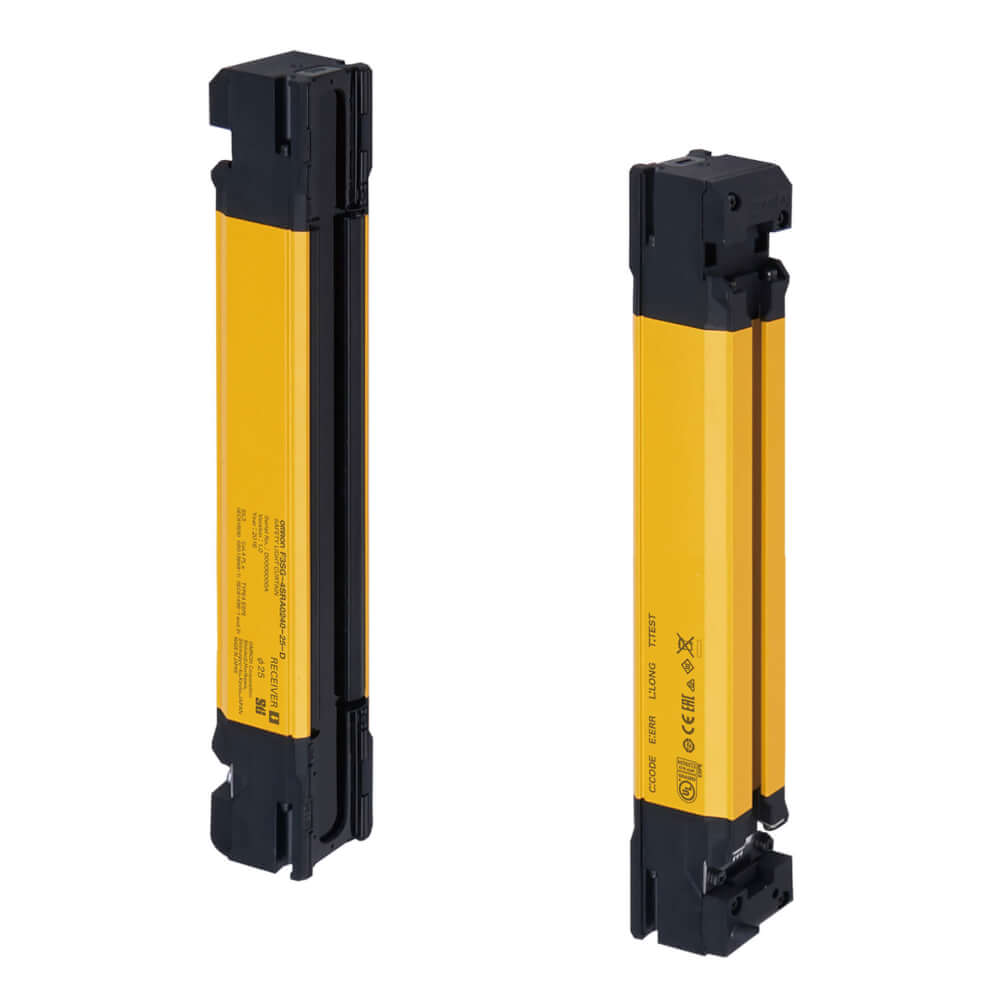

Safety Light Curtain, F3SG-SRB Standard, Type 2, 85 mm resolution, range 0.3 to 20.0 m, height 280 mm, PNP/NPN
| Sensing method | Safety light curtain |
| Type of protection | Body protection |
| Number of beams | 4 |
| Detection capability | 85 mm |
| Safety field height | 280 mm |
| Type of safety according to IEC 61496-1 | 2 |
| Beam spacing | 80 mm |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Key features | Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Warning zone |
| Degree of protection (IP) | IP65/IP67/IP67G |
| Cascadable | ✔️ |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Type of switching output of the OSSD | PNP/NPN |
| Response time | 8 ms |
| With muting function | ✔️ |
| With beam coding | ✔️ |
| Communication option(s) | Bluetooth, IO-Link, USB |
| Suitable for safety functions | ✔️ |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Connection method | Root connector (order separately) |
| Supply voltage DC | 19.2-28.8 V |
| Max. output current at protected output | 300 mA |
| Ambient temperature | -30-55 °C |
| Overall length | 280 mm |
| Height of sensor | 38 mm |
| Width of sensor | 32 mm |
| Number of fixed side-mount brackets | 2 |
| Number of adjustable side-mount brackets | 1 |
| Number of intermediate brackets | 0 |
 |
E39-R1S | Accessory photosensor, reflector, 40x60x7.5 mm, ABS & Acryllic |
|
 |
E3AS-F1000IPT-M1TJ 0.3M | Photoelectric sensor, rectangular housing, plastic body, infrared laser class 1, time-of-flight, 1000 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 pigtail Smartclick connector, 0.3 m |
|
|
E3AS-F1500IPT-M1TJ 0.3M | Photoelectric sensor, rectangular housing, plastic body, infrared laser class 1, time-of-flight, 1500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 pigtail Smartclick connector, 0.3 m |
|
 |
E3Z-R81 2M | Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 2 m cable |
|
|
E3Z-R81 5M | Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 5 m cable |
|
 |
E3Z-T81 2M | Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, PNP, Light-ON/Dark-ON, 2 m cable |
|
|
E3Z-T81 5M | Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, PNP, Light-ON/Dark-ON, 5 m cable |
|
 |
F39-FMA150R | Muting sensor arm mounter for retroreflective sensor; length 150 mm (2 mounters per set) |
|
|
F39-FMA150T | Muting sensor arm mounter for through-beam sensor; length 150 mm (2 mounters per set) |
|
|
F39-FMA400R | Muting sensor arm mounter for retroreflective sensor; length 400 mm (2 mounters per set) |
|
|
F39-FMA400T | Muting sensor arm mounter for through-beam sensor; length 400 mm (2 mounters per set) |
|
 |
F39-GCN5 | Muting Sensor Connection Box for F3SG-SR/PG series |
|
 |
F39-GCNY2 | Safety sensor accessory, F3SG-R_SR, M12 Y-joint connector, 0.5 m |
|
|
F39-GCNY3 | Safety sensor accessory, F3SG-R_SR, Reset Switch M12 Y-joint connector, 0.5 m |
|
 |
F39-JG10A-D | Safety sensor accessory, F3SG-R Advanced, receiver cable M12 8-pin, female, 10 m |
|
 |
F39-JG10A-L | Safety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 10 m |
|
 |
F39-JG10B-D | Safety sensor accessory, F3SG-R Advanced, receiver extension cable M12 8-pin, male/female, 10 m |
|
 |
F39-JG10B-L | Safety sensor accessory, F3SG-R Advanced, emitter extension cable M12 5-pin, male/female, 10 m |
|
 |
F39-JG10C-D | Root-straight cable 10 m for F3SG-SR (cable for receiver with dedicated connector – Black) |
|
 |
F39-JG10C-L | Root-straight cable 10 m for F3SG-SR (cable for emitter with dedicated connector – Gray) |
|
|
F39-JG20B-D | Safety sensor accessory, F3SG-R Advanced, receiver extension cable M12 8-pin, male/female, 20 m |
|
|
F39-JG20B-L | Safety sensor accessory, F3SG-R Advanced, emitter extension cable M12 5-pin, male/female, 20 m |
|
|
F39-JG3A-D | Safety sensor accessory, F3SG-R Advanced, receiver cable M12 8-pin, female, 3 m |
|
|
F39-JG3A-L | Safety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 3 m |
|
|
F39-JG3B-D | Safety sensor accessory, F3SG-R Advanced, receiver extension cable M12 8-pin, male/female, 3 m |
|
|
F39-JG3B-L | Safety sensor accessory, F3SG-R Advanced, emitter extension cable M12 5-pin, male/female, 3 m |
|
|
F39-JG3C-D | Root-straight cable 3 m for F3SG-SR (cable for receiver with dedicated connector – Black) |
|
|
F39-JG3C-L | Root-straight cable 3 m for F3SG-SR (cable for emitter with dedicated connector – Gray) |
|
|
F39-JG7C-D | Root-straight cable 7 m for F3SG-SR (cable for receiver with dedicated connector – Black) |
|
|
F39-JG7C-L | Root-straight cable 7 m for F3SG-SR (cable for emitter with dedicated connector – Gray) |
|
 |
F39-JGR12L | Side-by-side Cascading Cable set 0.12 m for F3SG-4SR (2 cables per set, for emitter and receiver) |
|
 |
F39-JGR3K-D | Root-Plug cable for extended set 0.3 m for F3SG-4SR (cable for receiver – black) |
|
 |
F39-JGR3K-L | Root-Plug cable for extended set 0.3 m for F3SG-4SR (cable for emitter – gray) |
|
 |
F39-JGR3W | Cascading cable for extended set 0.3 m for F3SG-4SR (2 cables per set, for emitter and receiver) |
|
 |
F39-LITF1 | Intelligent Tap Bracket For DIN in Panel |
|
 |
F39-LMAF1 | Bracket for muting sensor arm mounter (2 units per set) |
|
 |
F39-LSGA | Adjustable Side-Mount Bracket (2 brackets per set) |
|
 |
F39-LSGF | Fixed Side-Mount Bracket (2 brackets per set) |
|
 |
F39-LSGTB-RE | Adjustable top/bottom bracket set (2 pcs.) for F3SG-RA/ RE series |
|
 |
F39-LSGTB-SJ | Adjustable top/bottom bracket set (2 pcs.) for F3SJ/ SN series |
|
 |
F39-PTS | Laser-alignment kit for F3SG-SR/PG Series |
|
 |
F39-SGBT | Bluetooth Communication Unit for F39-SGIT-IL3 |
|
 |
F39-SGIT-IL3 | Intelligent Tap unit for F3SG-SR/PG |
|
 |
F39-SGLP | Safety sensor accessory, F3SG-SR/PG, lamp unit |
|
 |
F39-SML0990 | Mirror column 990 mm for Safety Light Curtain F3SG-SR/PG up to 880 mm |
|
 |
F39-ST0990 | Floor mount column of 990 mm for F3SG-SR/PG; Protective Height up to 880 mm |
|
 |
F39-STB | Mount-column adjustable base for F3SG-SR/PG |
|
 |
XS2G-D5S1 | Field assembly connector, M12 straight plug (male), 5-poles, A coded, screw connection, for cable diameters 5-6 mm |
|
 |
XS3W-M421-401-R | Cable with connectors on both cable ends, M8 straight socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 1 m |
|
|
XS3W-M421-402-R | Cable with connectors on both cable ends, M8 straight socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 2 m |
|
|
XS3W-M421-405-R | Cable with connectors on both cable ends, M8 straight socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 5 m |
|
|
XS3W-M421-410-R | Cable with connectors on both cable ends, M8 straight socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 10 m |
|
 |
XS3W-M424-402-R | Cable with connectors on both cable ends, M8 right-angle socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 2 m |
|
|
XS3W-M424-405-R | Cable with connectors on both cable ends, M8 right-angle socket (female), M8 straight plug (male), 4-poles, PVC robot cable, IP67, 5 m |
|
|
XS3W-M42C-4C2-A | Cable with connectors on both cable ends, M8 straight socket (female), Smartclick M12 straight plug (male), 4-poles, PVC standard cable, IP67, 0.2 m |
|
 |
XS5F-D421-C80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 1 m |
|
|
XS5F-D421-D80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 2 m |
|
|
XS5F-D421-E80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 3 m |
|
|
XS5F-D421-G80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 5 m |
|
|
XS5F-D421-J80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 10 m |
|
|
XS5F-D421-L80-F | Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 20 m |
|
 |
XS5F-D521-DJ0-IL | IO-Link cable, Smartclick M12 straight socket (female), 5-poles, A coded, PVC, IP67, 2 m |
|
