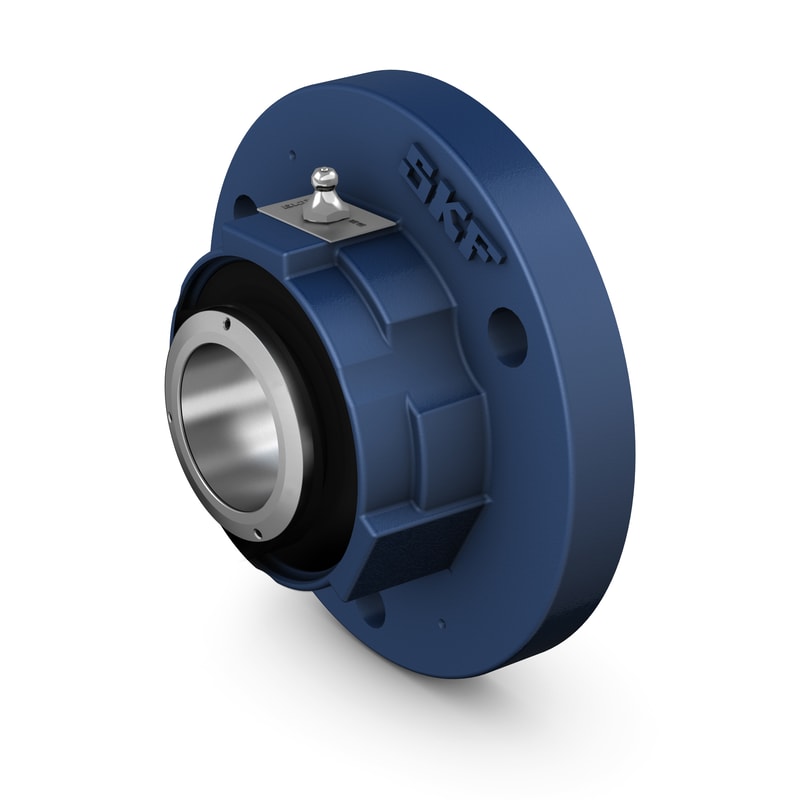

Flanged roller bearing units consist of an insert bearing mounted in a cast housing that can be bolted to a machine wall or frame. In addition to being part of a unit, some flanged housings for insert bearings are available as separate components. The SKF assortment includes roller bearing units compliant with several industrial standards, meeting many requirements regarding bolt patterns and mechanisms for locking onto on the shaft.
| Metric/inch series |
Inch
|
| Bearing insert |
Spherical roller bearing
|
| Bearing position |
Non-locating
|
| Locking method |
SKF ConCentra
|
| Bearing housing seal type |
Radial lip seal
|
| da |
36.513 mm
|
Shaft diameter |
|---|---|---|
| d2 |
65.989 mm
|
Collar outside diameter |
| A |
52.388 mm
|
Housing height |
| A1 |
19.05 mm
|
Housing foot height |
| A2 |
26.988 mm
|
Centre line of free bearing |
| A5 |
77.391 mm
|
Width including end cover |
| B |
64.691 mm
|
Inner ring width |
| J |
127 mm
|
Bolt pitch diameter |
| L |
158.75 mm
|
Housing outside diameter |
| N |
14.288 mm
|
Bolt hole diameter |
| s |
32.544 mm
|
Centre line unit to side face of inner ring |
| S |
0.794 mm
|
Centre line of “fixed” bearing |
| T |
59.134 mm
|
Overall unit width |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
|---|
| Basic dynamic load rating | C |
96.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
90.3 kN
|
| Fatigue load limit | Pu |
9.79 kN
|
| Limiting speed |
3 800 r/min
|
|
| Limiting value | e |
0.28
|
| Calculation factor | Y1 |
2.4
|
| Calculation factor | Y2 |
3.6
|
| Calculation factor | Y0 |
2.5
|
| Bearing mean diameter | dm |
59.944 mm
|
| Axial holding force of the locking mechanism | Pa |
14.9 kN
|
| Mass bearing unit |
3.86 kg
|
| Attachment bolt diameter | G |
12.7 mm
|
|---|---|---|
| Set screws |
M6-1 x 16mm
|
|
| Number of set screws |
3
|
|
| Tightening torque for set screws |
7.909 N·m
|
|
| Grease quantity for relubrication |
4 g
|
