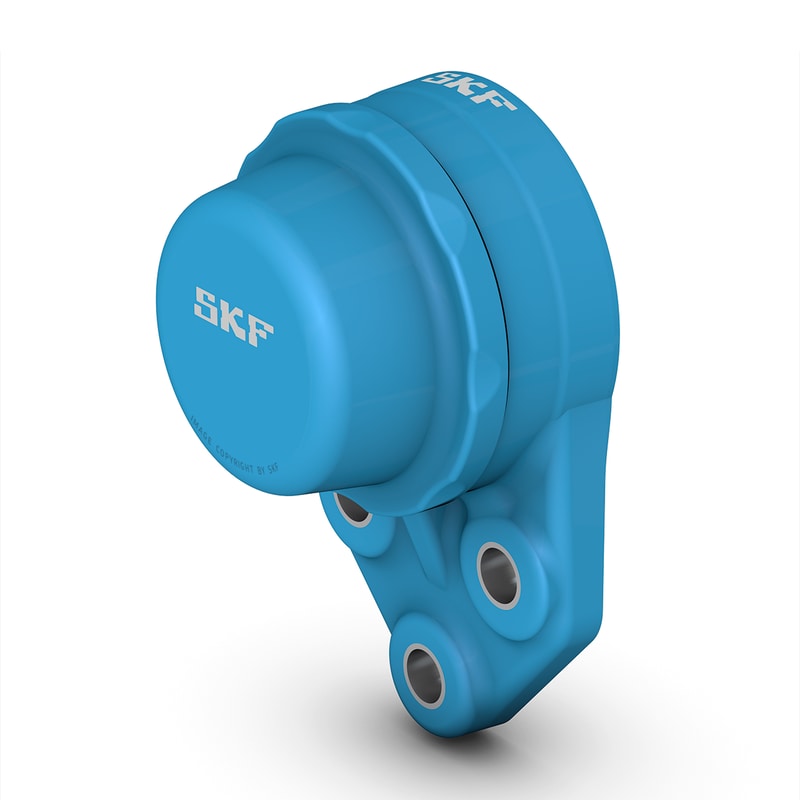

F3BBC 50M-CPSS-DFHThree-bolt bracket flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

F3BBC 50M-CPSS-DFHThree-bolt bracket flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

SKU: F3BBC 50M-CPSS-DFHThree-bolt bracket flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

ID:117691

Technical Data
Reviews (0)

Compliance with standard	Not standardized
Purpose specific	For food and beverage applications
Material, housing	Composite for the SKF Food Line
Sealing, bearing	Seal on both sides and flinger on one side
Sealing type, bearing	Contact, gutter
Sealing, unit	End cover and back seal
Coating	Without

Dimensions

d	50 mm	Bore diameter
d₁	≈ 62.51 mm	Outer diameter of inner ring
D_c	98 mm	Centring diameter
H_a	6 mm	Groove height for backseal
A	42 mm	Overall width
A₁	19 mm	Flange width
A₅	74 mm	Standout of end cover
B	43.6 mm	Width of inner ring
B₄	9 mm	Distance from locking device side face to thread centre
J	60 mm	Distance between attachment bolt holes
J₁	46 mm	Distance between attachment bolt holes
H	189 mm	Overall height
H₁	68 mm	Radial position of the spherical seat
L	108 mm	Overall length
L₁	104 mm	Flange length
N	17.5 mm	Diameter of attachment bolt hole
s₁	32.6 mm	Distance from locking device side face to raceway centre
T	54.1 mm	Overall unit width

Calculation data

Basic dynamic load rating	C	29.6 kN
Basic static load rating	C₀	23.2 kN
Fatigue load limit	P_u	0.98 kN
Limiting speed		500 r/min

Mass

Mass bearing unit

1.1 kg

Mounting information

Set screw	G₂	M10x1
Hexagonal key size for set screw		5 mm
Recommended tightening torque for set screw		16.5 N·m
Recommended diameter for attachment bolts, mm	G	16 mm
Recommended diameter for attachment bolts, inch	G	0.625 in
