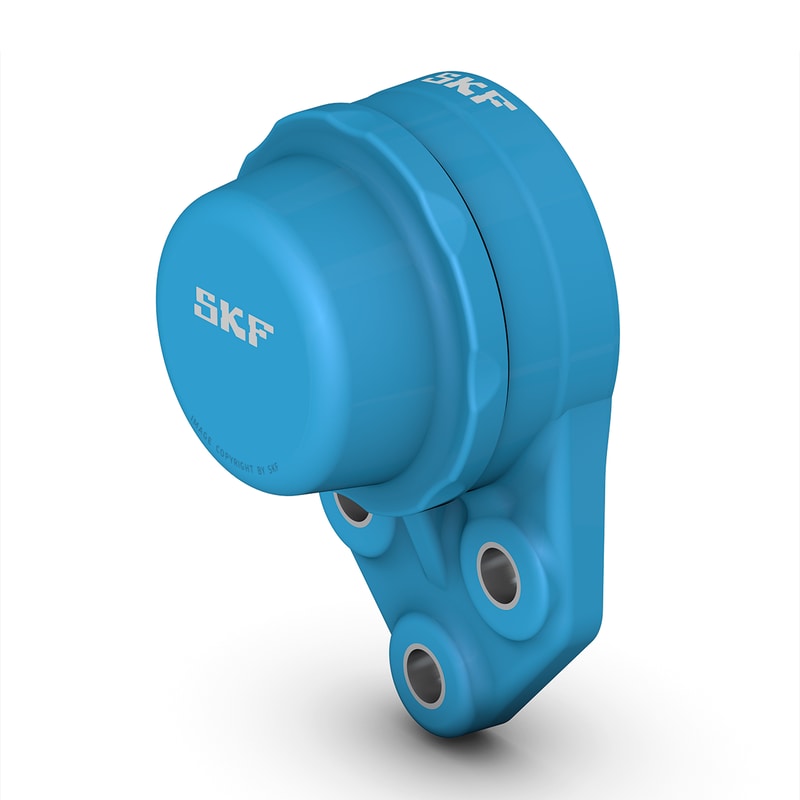

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Compliance with standard |
Not standardized
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Composite for the SKF Food Line
|
| Sealing, bearing |
Seal on both sides and flinger on one side
|
| Sealing type, bearing |
Contact, gutter
|
| Sealing, unit |
End cover and back seal
|
| Coating |
Without
|
| d |
49.213 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 62.51 mm
|
Outer diameter of inner ring |
| Dc |
98 mm
|
Centring diameter |
| Ha |
6 mm
|
Groove height for backseal |
| A |
42 mm
|
Overall width |
| A1 |
19 mm
|
Flange width |
| A5 |
74 mm
|
Standout of end cover |
| B |
43.6 mm
|
Width of inner ring |
| B4 |
9 mm
|
Distance from locking device side face to thread centre |
| J |
60 mm
|
Distance between attachment bolt holes |
| J1 |
46 mm
|
Distance between attachment bolt holes |
| H |
189 mm
|
Overall height |
| H1 |
68 mm
|
Radial position of the spherical seat |
| L |
108 mm
|
Overall length |
| L1 |
104 mm
|
Flange length |
| N |
17.5 mm
|
Diameter of attachment bolt hole |
| s1 |
32.6 mm
|
Distance from locking device side face to raceway centre |
| T |
54.1 mm
|
Overall unit width |
| Basic dynamic load rating | C |
29.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
23.2 kN
|
| Fatigue load limit | Pu |
0.98 kN
|
| Limiting speed |
500 r/min
|
| Mass bearing unit |
1.1 kg
|
| Set screw | G2 |
3/8-24 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
4.763 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
