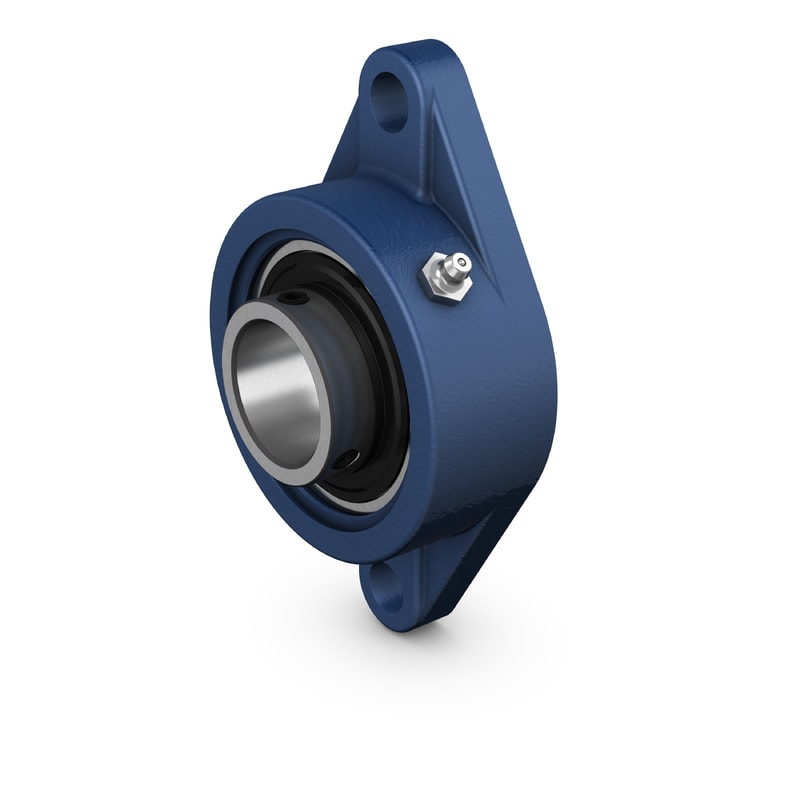

These oval flanged ball bearing units are compliant with North American standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Compliance with standard |
North American standard
|
| Purpose specific |
For air handling applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal and flinger on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
55.563 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 75.64 mm
|
Outer diameter of inner ring |
| A |
53.2 mm
|
Overall width |
| A1 |
20.6 mm
|
Flange width |
| A5 |
39 mm
|
Width including end cover |
| B |
65.1 mm
|
Width of inner ring |
| B4 |
10 mm
|
Distance from locking device side face to thread centre |
| Db1 |
138.1 mm
|
Top external diameter |
| H |
235 mm
|
Overall height |
| J |
202.1 mm
|
Distance between attachment bolts |
| L |
138.1 mm
|
Overall length |
| N |
17.46 mm
|
Diameter of attachment bolt hole |
| s1 |
39.7 mm
|
Distance from locking device side face to raceway centre |
| T |
73.8 mm
|
Overall unit width |
| RG |
1/8-27 NPT
|
Housing thread for grease fitting |
|---|---|---|
| R1 |
38.1 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| DN |
6.579 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
11.113 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
| Basic dynamic load rating | C |
52.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
36 kN
|
| Fatigue load limit | Pu |
1.53 kN
|
| Limiting speed |
3 400 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
4.1 kg
|
| Set screw | G2 |
3/8-24 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
4.763 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
