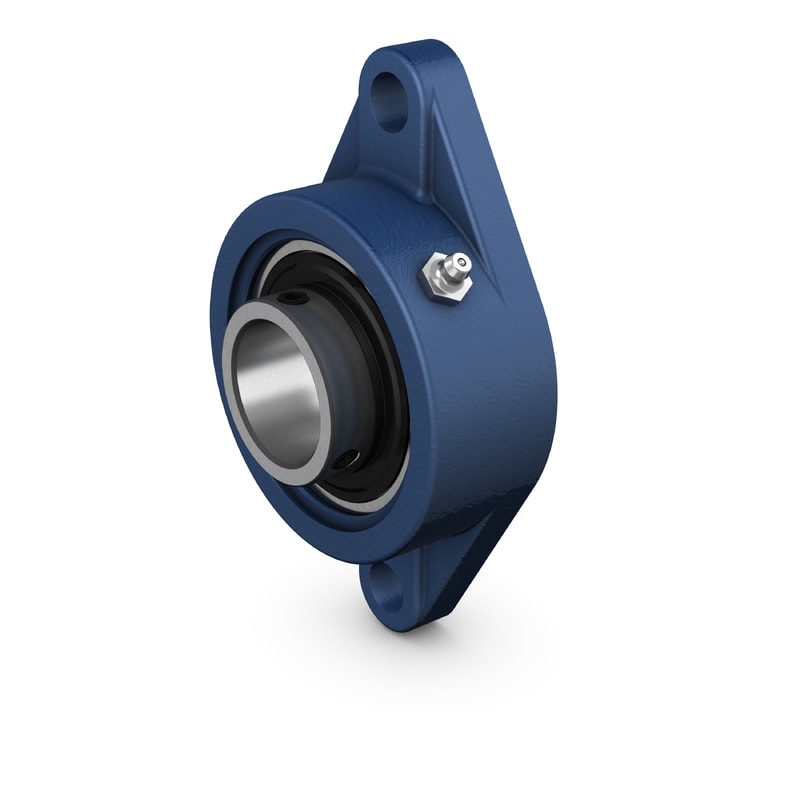

These oval flanged ball bearing units consists of an insert bearing mounted in a cast iron housing that can be bolted to a machine wall or frame. The units have set screw locking which makes them suitable for applications where the direction of rotation is constant or alternating, and they can be relubricated through a grease fitting in the housing. These units are especially suitable for bearing arrangements that operate under tough conditions with relatively heavy loads.
| Compliance with standard |
North American standard
|
| Purpose specific |
For material handling applications
|
| Material, housing |
Cast iron
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
28.575 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 39.7 mm
|
Outer diameter of inner ring |
| A |
34.9 mm
|
Overall width |
| A1 |
13.5 mm
|
Flange width |
| A5 |
22.5 mm
|
Width including end cover |
| B |
30.2 mm
|
Width of inner ring |
| B1 |
30.2 mm
|
Overall bearing width |
| B4 |
5 mm
|
Distance from locking device side face to thread centre |
| Db1 |
79.4 mm
|
Top external diameter |
| H |
141.3 mm
|
Overall height |
| J |
116.7 mm
|
Distance between attachment bolts |
| L |
79.4 mm
|
Overall length |
| N |
12.7 mm
|
Diameter of attachment bolt hole |
| s1 |
21 mm
|
Distance from locking device side face to raceway centre |
| T |
42 mm
|
Overall unit width |
| RG |
1/8-27 NPT
|
Housing thread for grease fitting |
|---|---|---|
| R1 |
22.1 mm
|
Axial position of the housing thread |
| Rα |
45 °
|
Angular position of the housing thread |
| DN |
6.579 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
11.113 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
| Basic dynamic load rating | C |
19.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Limiting speed |
6 300 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
0.9 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.175 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
10 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.4375 in
|
