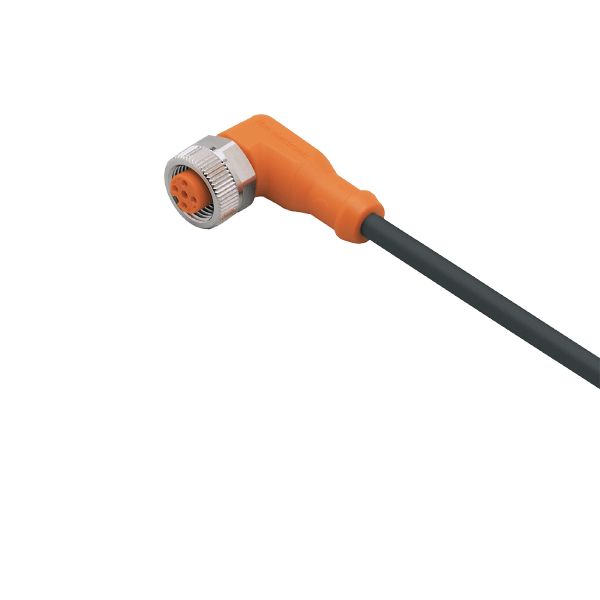

EVC563

EVC563 - Image 2

EVC563

Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Vibration and shock resistant thanks to coupling ring with locking mechanism
Continuously high EMC interference protection against noise field interference

SKU: EVC563

$4,310.00

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III
Max. current load total [A]	4
Overall current rating (UL) [A]	3

Operating conditions

Ambient temperature [°C]

-25…90

Note on ambient temperature

cULus: …75

Ambient temperature (moving) [°C]

-25…90

Note on ambient temperature (moving)

cULus: …75

Protection

IP 65; IP 67

Mechanical data

Weight [g]

587.5

Dimensions [mm]

26.5 x 15.5 x 36.5

Materials

housing: TPU orange; Sealing: FKM

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	≥ 2 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 15 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 5 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection – socket

Connection	Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm; Shielded connection cable: screen connected

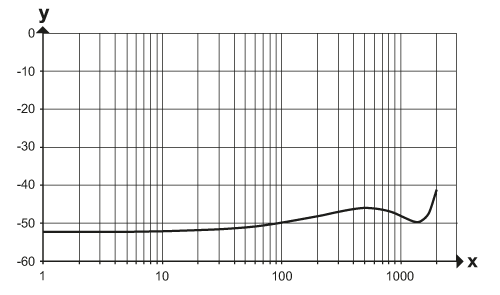

Diagrams and graphs

x	frequency (MHz)
y	Shielding characteristics (dB)
	according to DIN EN 60512-23-3

EVC563

Datasheet
EN PDF
