Application
| Special feature |
Halogen-free |
Electrical data
| Operating voltage [V] |
< 250 AC/DC |
| Protection class |
II |
| Max. current load total [A] |
4 |
Operating conditions
| Ambient temperature [°C] |
-25…90 |
| Note on ambient temperature |
| valve plug: -30 … 90 °C |
| M12 connector: -25 … 90 °C |
|
| Protection |
IP 65; (M12 connector: IP65, IP67, IP68, IP69K) |
Mechanical data
| Weight [g] |
82 |
| Moulded-body material |
PA-GF, Halogen-free / TPU, Halogen-free |
| Material nut |
steel, galvanised / brass, nickel-plated |
| Sealing material |
NBR / CR |

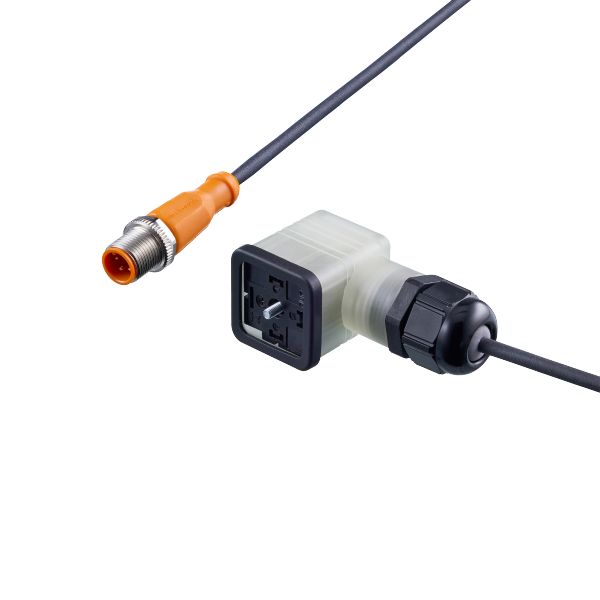

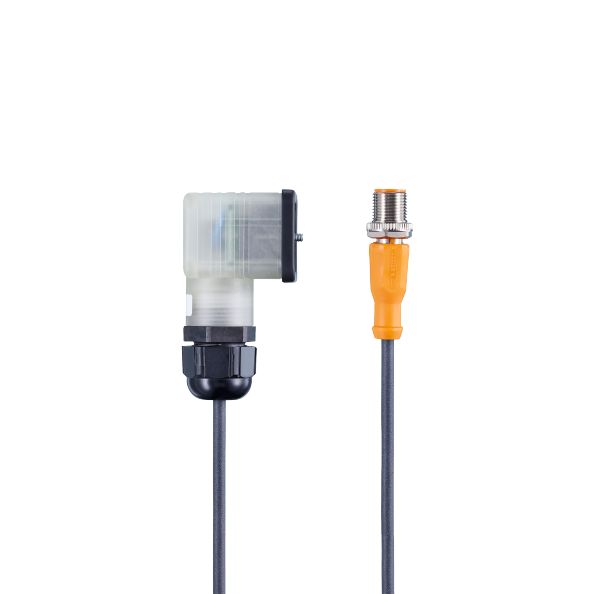

Electrical connection – socket
|
Connector: 1 x valve type A DIN, angled; Moulded body: PA-GF, Halogen-free, black; Locking: steel, galvanised; Sealing: NBR / CR; Contacts: brass; Tightening torque: 0.5…0.6 Nm |
Electrical connection – Cable
| Connection |
Cable: 0.24 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection – plug
|
Connector: 1 x M12, straight; coding: A; Moulded body: TPU, Halogen-free, orange; Locking: brass, nickel-plated; Tightening torque: 0.6…1.5 Nm |
