| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
| Operating voltage [V] | 10…30 DC; (“supply class 2” to cULus) |
|---|---|
| Protection class | II |
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 12 |
| Electrical design | PNP |
|---|
| Ambient temperature [°C] | -25…80 |
|---|---|
| Ambient temperature (moving) [°C] | -5…60 |
| Protection | IP 67; IP 68 |
| Weight [g] | 1174.5 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 22 x 54 x 127 | ||||||||||
| Materials | PA | ||||||||||
| Moulded-body material | PA | ||||||||||

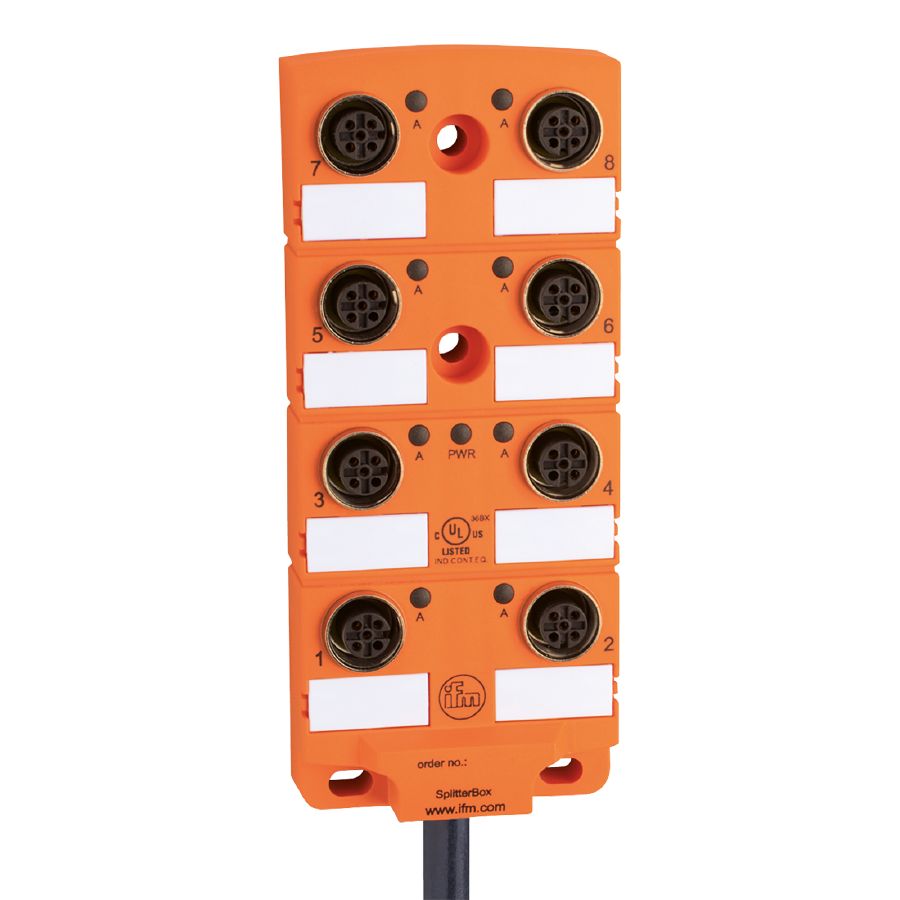

| Number of ports splitter box | 8 | ||||||||||
| Connector type | M12 | ||||||||||
| Drag chain suitability | yes | ||||||||||
| Drag chain suitability |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Cable: 10 m, PUR, Halogen-free, black, Ø 8.2 mm; 8 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 0.75 mm² (95 x Ø 0.1 mm ) |
| Connection | Connector: 8 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8…1.5 Nm |
|---|
