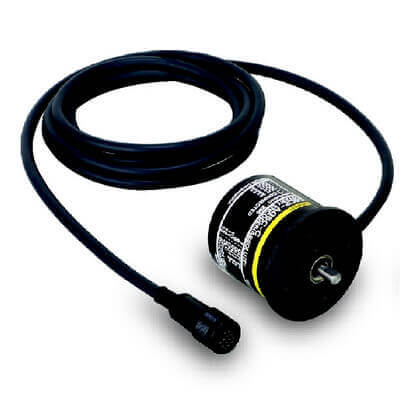

Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2m cable, H8PS connector
| Model | Absolute encoder |
| Construction size | 50 mm |
| Resolution per rotation | 256 |
| Output code | Gray |
| Shaft diameter | 6 mm |
| Power supply voltage | 12-24 V |
| Output type | NPN |
| Connection method | System connector |
| Cable length | 2 m |
 |
E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder |
|
 |
E69-C06M | Accessory encoder, shaft coupling dia. 6mm, metal |
|
 |
E69-C610B | Shaft coupling for E6F-C encoder, Different end diameter |
|
 |
E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
|
 |
E69-DF10 | Extension cable for E6C2-A/E6C3-A/E6CP/E6F encoders, 10 m |
|
|
E69-DF20 | Extension cable for E6C2-A/E6C3-A/E6CP/E6F encoders, 20 m |
|
|
E69-DF5 | Extension cable for E6C2-A/E6C3-A/E6CP/E6F encoders, 5m |
|
Datasheet
EN PDF
Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 5 m cable
Encoder, absolute, 256ppr, 8-bit, 12-24 VDC, gray code output, 2 m cable
Encoder, absolute, 256ppr, 8-bit, 5-12 VDC, gray code output, 2 m cable
Encoder, absolute, 256 ppr, 8-bit, 12 to 24 VDC gray code output, 5 m cable, H8PS connector
