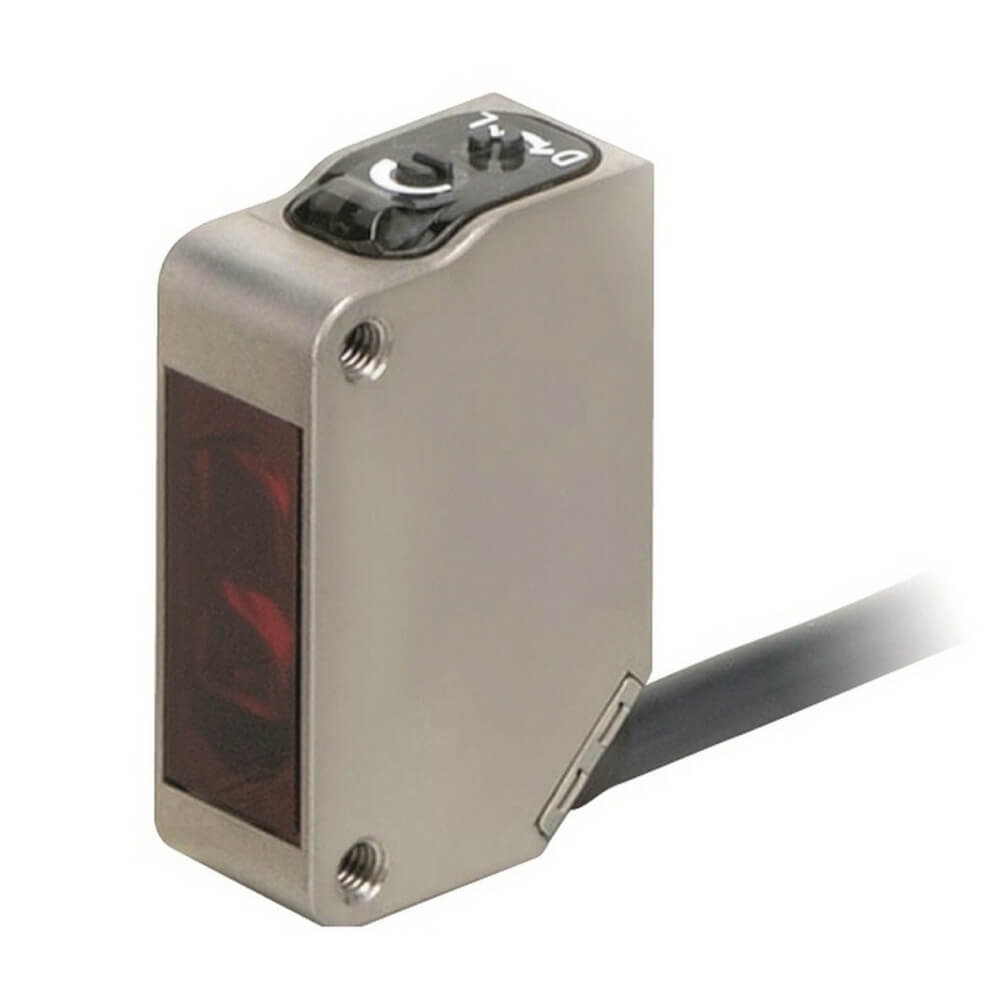

Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 2 m cable
| Shape | Cuboid |
| Sensing method | Retro-reflective |
| Sensing distance | 4000 mm |
| Sensing distance (min.) | 100 mm |
| Setting method | Manual adjustment |
| Connection method | Cable |
| Cable length | 2 m |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1 ms |
| Material housing | Stainless steel |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 32 mm |
| Product Depth (unpacked) | 21 mm |
| Type of light | Polarity free red light |
| Power supply voltage | 10-30 V |
| Features | Oil-resistant |
| Degree of protection (IP) | IP67/IP69K |
 |
E39-L104 | Mounting bracket for E3Z sensor, standard, vertical mounting |
|
 |
E39-L142 | Mounting Bracket, protective side wall (for E3Z) |
|
 |
E39-L144 | Sensor mounting Bracket, Protective bracket for E3Z pre-wired |
|
 |
E39-L150 | Sensor mounting Bracket for E3Z, 100mm high post |
|
 |
E39-L151 | Sensor mounting Bracket, for E3Z, 200mm high post |
|
 |
E39-L153 | Mounting bracket for E3Z sensor, L shape, for prewired |
|
 |
E39-L43 | Mounting bracket for E3Z sensor, side mounting |
|
 |
E39-L44 | Mounting bracket for E3Z sensor, rear mounting |
|
 |
E39-L98 | Protective metal cover for E3S-A/E3Z vertical sensor |
|
 |
E39-R10 | Accessory photosensor, reflector, 52x62x8 mm, ABS & Acryllic |
|
 |
E39-R1S | Accessory photosensor, reflector, 40x60x7.5 mm, ABS & Acryllic |
|
 |
E39-R2 | Accessory photosensor, reflector, 80.8x60x7.5 mm, ABS & Acryllic |
|
 |
E39-R3 | Accessory photosensor, reflector, 42x22mm |
|
 |
E39-R7 | Sensor reflector, round, 84mm dia |
|
 |
E39-R8 | Reflector 100x100mm |
|
 |
E39-R9 | Reflector 35×42 mm |
|
Datasheet
EN PDF
Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, red LED, background suppression, 150 mm, PNP, Light-ON/Dark-ON, 2 m cable
Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, red LED, background suppression, 150 mm, NPN, Light-ON/Dark-ON, 2 m cable
Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, infrared LED, diffuse, 1 m, PNP, Light-ON/Dark-ON, M8 4-pin connector
Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, infrared LED, diffuse, 1 m, PNP, Light-ON/Dark-ON, 2 m cable
