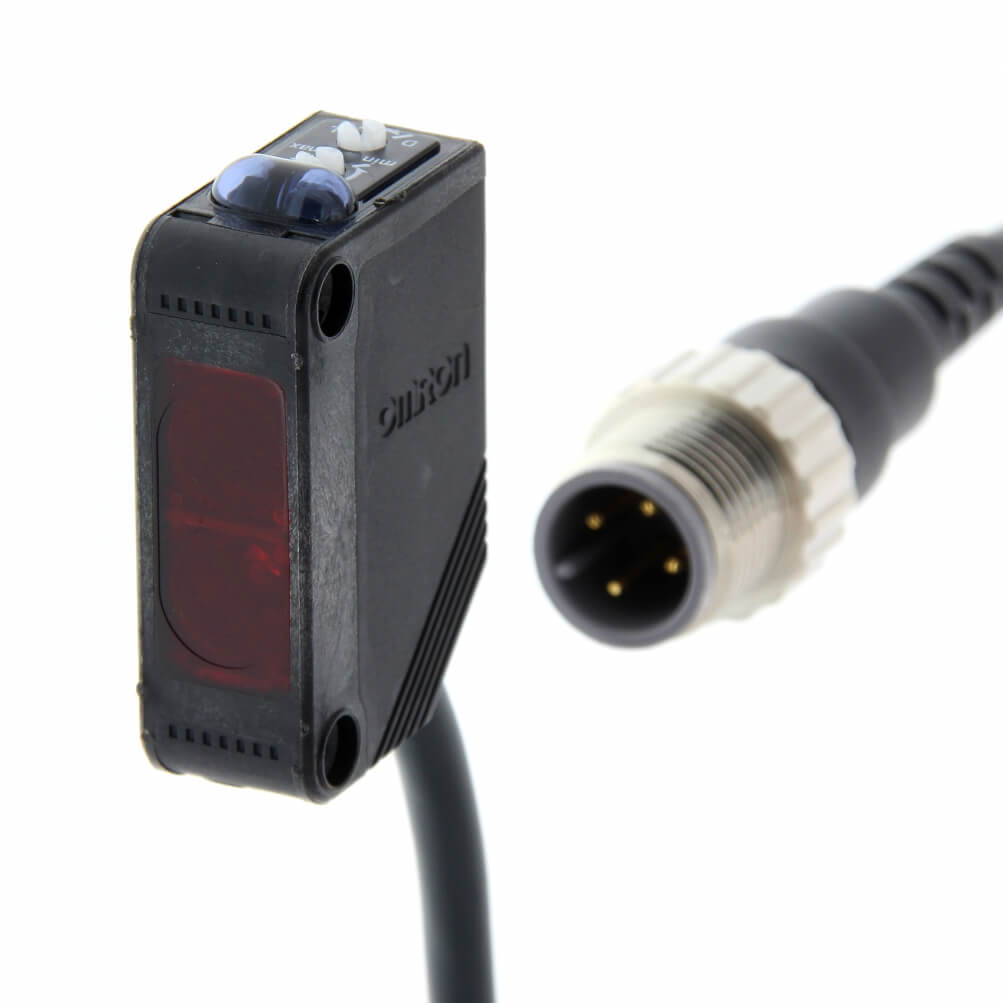

Photoelectric sensor, rectangular housing, infrared LED, diffuse, 1 m, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 pigtail Smartclick connector, 0.3 m
| Shape | Cuboid |
| Sensing method | Diffuse reflective |
| Sensing distance | 1000 mm |
| Setting method | IO-Link, Manual adjustment |
| Connection method | M12 pigtail Smartclick connector |
| Cable length | 0.3 m |
| Output type | IO-Link, PNP |
| Operation mode | Dark-ON, Light-ON |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Response time | 1 ms |
| Material housing | PBT |
| Thread size | Other |
| Product Width (unpacked) | 10.8 mm |
| Product Height (unpacked) | 31 mm |
| Product Depth (unpacked) | 20 mm |
| Type of light | Infrared light |
| Power supply voltage | 10-30 V |
| Degree of protection (IP) | IP67 |
 |
E39-L104 | Mounting bracket for E3Z sensor, standard, vertical mounting |
|
 |
E39-L142 | Mounting Bracket, protective side wall (for E3Z) |
|
 |
E39-L144 | Sensor mounting Bracket, Protective bracket for E3Z pre-wired |
|
 |
E39-L150 | Sensor mounting Bracket for E3Z, 100mm high post |
|
 |
E39-L151 | Sensor mounting Bracket, for E3Z, 200mm high post |
|
 |
E39-L153 | Mounting bracket for E3Z sensor, L shape, for prewired |
|
 |
E39-L43 | Mounting bracket for E3Z sensor, side mounting |
|
 |
E39-L44 | Mounting bracket for E3Z sensor, rear mounting |
|
 |
E39-L98 | Protective metal cover for E3S-A/E3Z vertical sensor |
|
Datasheet
EN PDF
Photoelectric sensor, rectangular housing, infrared LED, diffuse, 1 m, NPN, Light-ON/Dark-ON, 0.5 m cable
Photoelectric sensor, rectangular housing, infrared LED, diffuse, 1 m, PNP, Light-ON/Dark-ON, M8 4-pin connector
Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, M12 pigtail connector, 0.3 m
Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, 0.5 m cable
