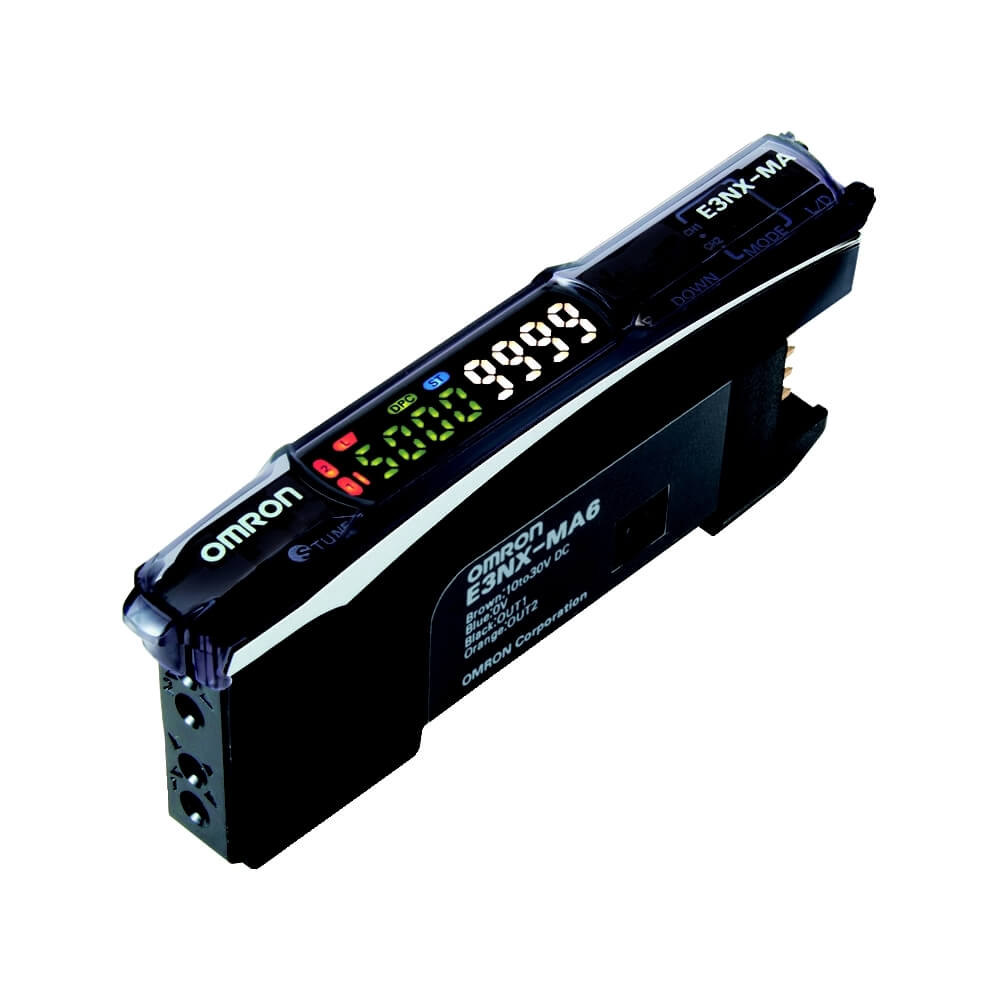

Fiber amplifier, 2 fiber input, twin digital display, smart tuning, multiple functions, 2 NPN output, system connector
| Shape | Cuboid, rail mounting |
| Sensing method | Amplifier |
| Setting method | Teach-In |
| Connection method | System connector |
| Output type | NPN |
| Operation mode | Dark-ON, Light-ON |
| Response time | 0.1 ms |
| Material housing | Polycarbonate |
| Product Width (unpacked) | 10 mm |
| Product Height (unpacked) | 33.5 mm |
| Product Length (unpacked) | 75.3 mm |
| Type of light | Polarity free red light |
| Power supply voltage | 10-30 V |
| Functions | Self-diagnosis, Timer, Twin |
| Features | 2 channels, Bank function, Twin outputs |
| Application | Object detection |
| Degree of protection (IP) | IP50 |
| Number of digital outputs | 2 |
| Number of digital inputs | 0 |
 |
E39-L143 | Mounting bracket for 10 mm wide sensor amplifiers, surface mount with screws |
|
 |
E3X-CN21 | Connector, 4-wire cable for master amplifier, 2 m cable |
|
|
E3X-CN21 5M | Connector, 4-wire, for master amplifier (monitor output types), 5m cable |
|
| E3X-CN21-M1J 0.3M | Accessory fiber amplifier, system connector for master amplifier, pigtail M12 4-pin connector, 0,3m cable |
|
|
 |
E3X-CN22 | Connector, 2-wire, for slave amplifier, 2m cable |
|
|
E3X-CN22 5M | Connector, 2-wire, for slave amplifier (monitor output types), 5m cable |
|
