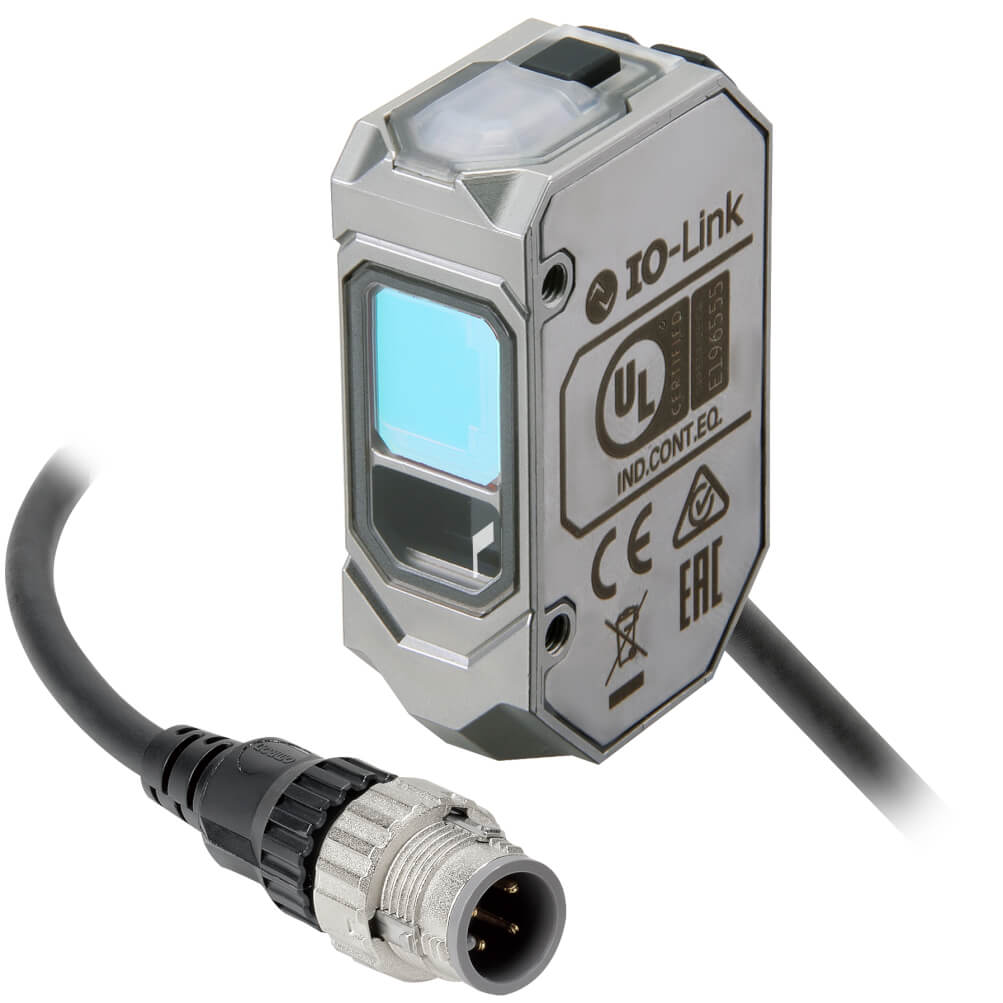

Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 pigtail Smartclick connector, 0.3 m
| Shape | Cuboid |
| Sensing method | Background suppression |
| Sensing distance | 500 mm |
| Sensing distance (min.) | 35 mm |
| Setting method | IO-Link, Teach-In |
| Connection method | M12 pigtail Smartclick connector |
| Cable length | 0.3 m |
| Output type | IO-Link, PNP |
| Operation mode | Dark-ON, Light-ON |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Response time | 1.5 ms |
| Material housing | Stainless steel |
| Product Width (unpacked) | 15.5 mm |
| Product Height (unpacked) | 48.6 mm |
| Product Depth (unpacked) | 30.4 mm |
| Type of light | Laser diode, red light |
| Laser class | 1 |
| Spot size | 18 mm x 1.5 mm |
| Power supply voltage | 10-30 V |
 |
E39-E16 | Air blow unit |
|
 |
E39-E19 | Front protection cover for E3AS-HL |
|
 |
E39-L221 | L-shaped mounting bracket |
|
 |
E39-L222 | Horizontal protective cover bracket |
|
 |
E39-L223 | Rear mounting bracket |
|
 |
E39-L224 | Robust mounting bracket |
|
 |
E39-L261 | Flexible mounting bracket |
|
 |
E39-L262 | 50mm post for flexible mounting bracket E39-L261 |
|
 |
E39-L263 | 100mm post for flexible mounting bracket E39-L261 |
|
Datasheet
EN PDF
Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, 10-30 VDC, NPN, Light-ON/Dark-ON, 2 m cable
Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4-pin
Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 pigtail connector 4-pin, 0.3 m
Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, 2 m cable
