$650.00
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 10 |
| Ambient temperature [°C] | -40…125 |
|---|---|
| Protection | IP 67 |
| Weight [g] | 32.3 |
|---|---|
| Dimensions [mm] | 41 x 27 x 30 |
| Materials | PA; FKM |
| Moulded-body material | PA |
| Pack quantity | 1 pcs. |
|---|
| Connection | terminals: …1.5 mm²; Cable sheath: Ø 6…8 mm |
|---|

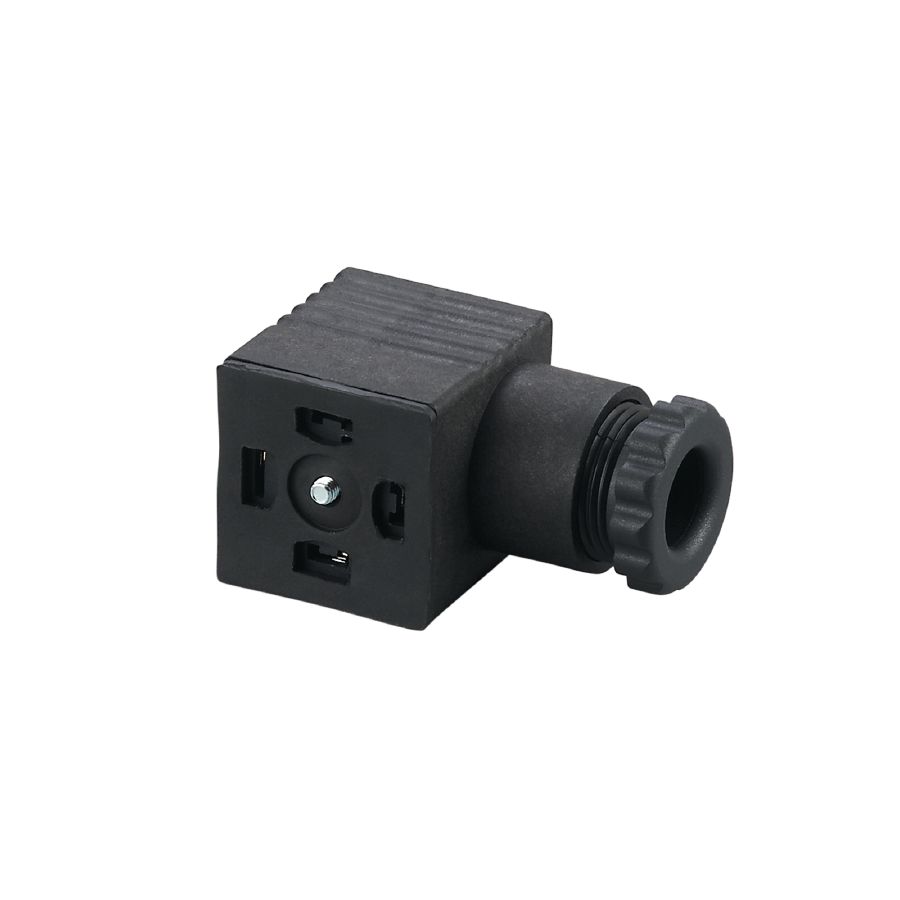

| Connector: 1 x valve plug type A DIN, angled; Moulded body: PA |
Datasheet
EN PDF
