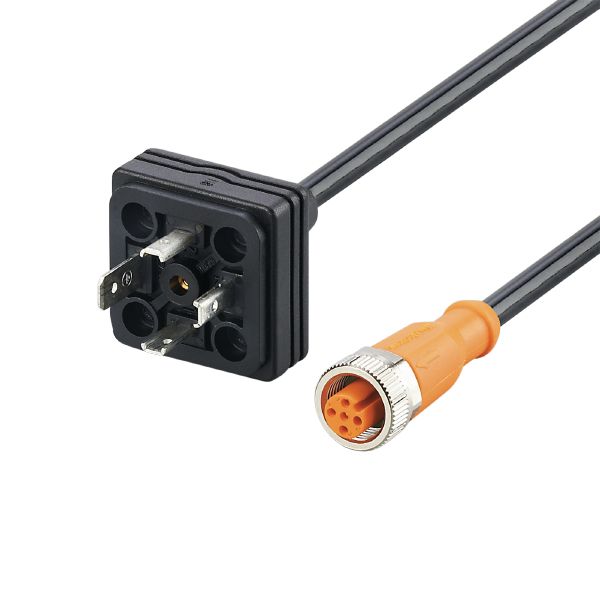

E30436

Application

Special feature	Free from silicone; Halogen-free
Free from silicone	yes

Electrical data

Operating voltage [V]	< 50 AC / < 60 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25…85
Protection	IP 65

Mechanical data

Remarks

Pack quantity	1 pcs.

Electrical connection – plug

	Connector: 1 x valve type A DIN, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Tightening torque: 0.6…1.5 Nm

Electrical connection

Connection	Cable: 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm²

Electrical connection – socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Tightening torque: 0.6…1.5 Nm
