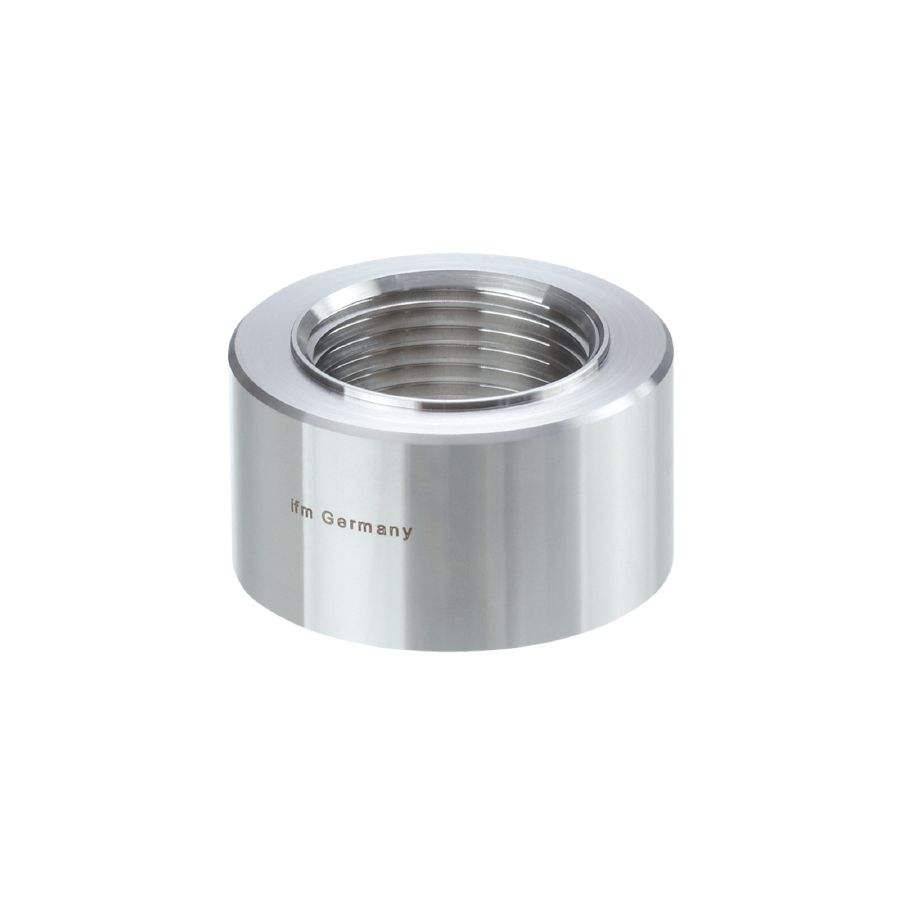

E30013

Application

Pressure rating [bar]

150

Note on pressure rating

for the connection sensor – adapter

MAWP (for applications according to CRN) [bar]

150

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC	The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions	The compatibility between medium and product material has to be checked in all applications.

Mechanical data

Weight [g]	300
Materials (wetted parts)	stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm

Remarks

Pack quantity	1 pcs.

E30013

Datasheet
EN PDF
