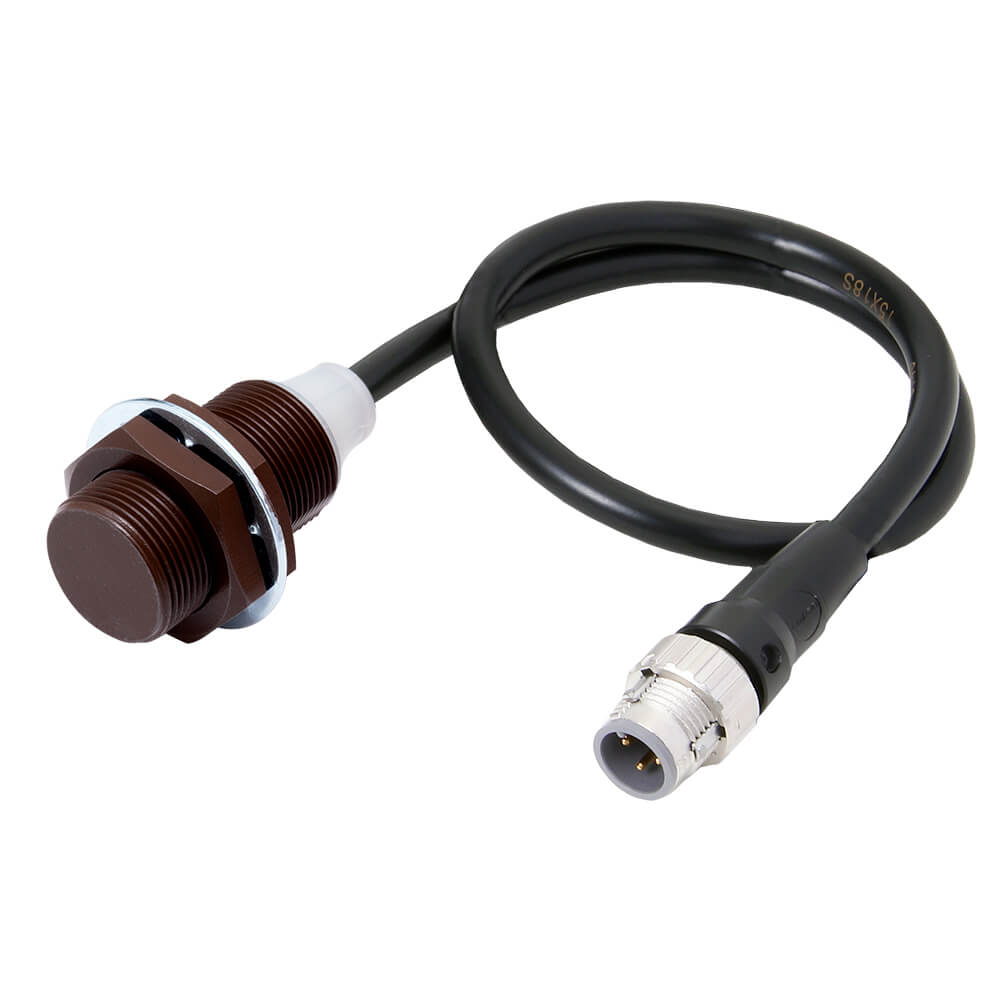

Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 10 mm, DC, 3-wire, PNP NO+NC, IO-Link COM3, M12 pigtail Smartclick connector, 0.3 m
| Size | M18 |
| Mounting type | Flush |
| Sensing distance | 10 mm |
| Output type | IO-Link, PNP |
| Operation mode | NO + NC |
| Connection method | M12 pigtail Smartclick connector |
| Material housing | Stainless steel |
| Cable specifications | PVC |
| Cable length | 0.3 m |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Overall length | 41.5 mm |
| Thread length | 30 mm |
| Features | Fluoroplastic coating, Metal sensing face |
| Degree of protection (IP) | IP67 |
