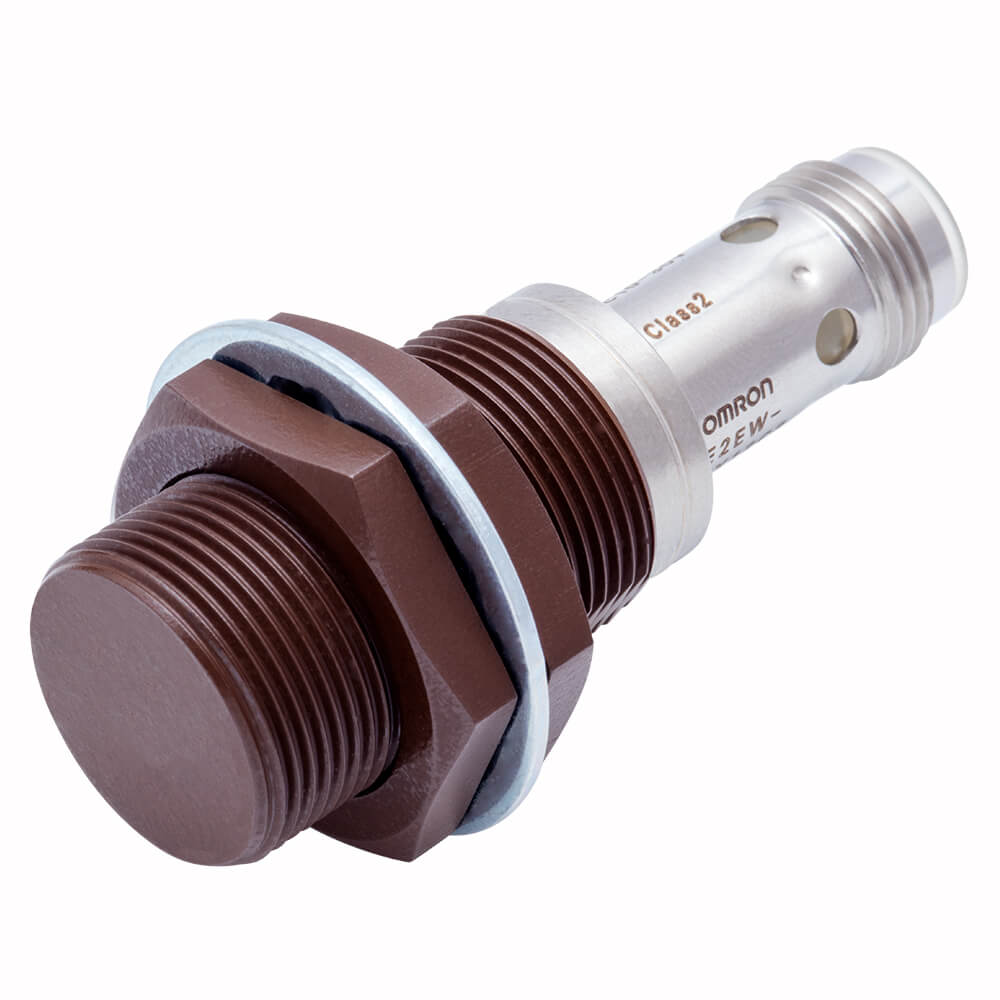

Proximity sensor, inductive, fluororesin coating (base material: SUS 303), M18, shielded, 10 mm, DC, 3-wire, PNP NC, M12 connector
| Size | M18 |
| Mounting type | Flush |
| Sensing distance | 10 mm |
| Output type | PNP |
| Operation mode | NC |
| Connection method | Connector M12 |
| Material housing | Stainless steel |
| Cable specifications | – |
| Overall length | 54.4 mm |
| Thread length | 28 mm |
| Features | Fluoroplastic coating, Metal sensing face |
| Degree of protection (IP) | IP67 |
Datasheet
EN PDF
Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 10 mm, DC, 3-wire, NPN NO, M12 pigtail Smartclick connector, 0.3 m
Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M30, shielded, 10 mm, DC, 3-wire, PNP NC, M12 pigtail Smartclick connector, 0.3 m
Proximity sensor, inductive, fluororesin coating (base material: SUS 303), M18, shielded, 10 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector
Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 12 mm, DC, 3-wire, NPN NO, M12 pigtail Smartclick connector, 0.3 m
