Application
| Special feature |
Free from silicone; Halogen-free; Drag chain suitability |
| Free from silicone |
yes |
Electrical data
| Operating voltage [V] |
8…32 DC |
| Protection class |
III |
| Max. current load total [A] |
4 |
Operating conditions
| Ambient temperature [°C] |
-40…80 |
| Ambient temperature (moving) [°C] |
-20…80 |
| Protection |
IP 67; (mating connector plugged in) |
Mechanical data
| Weight [g] |
0.001 |
| Materials |
PA; socket: TPU orange; Sealing: FKM |
| Material nut |
brass, nickel-plated |
| Drag chain suitability |
yes |
| Drag chain suitability |
| bending radius for flexible use |
min. 10 x cable diameter |
| travel speed |
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| bending cycles |
> 5 Mio. |
| torsional strain |
± 180 °/m |
|
Electrical connection – socket
|

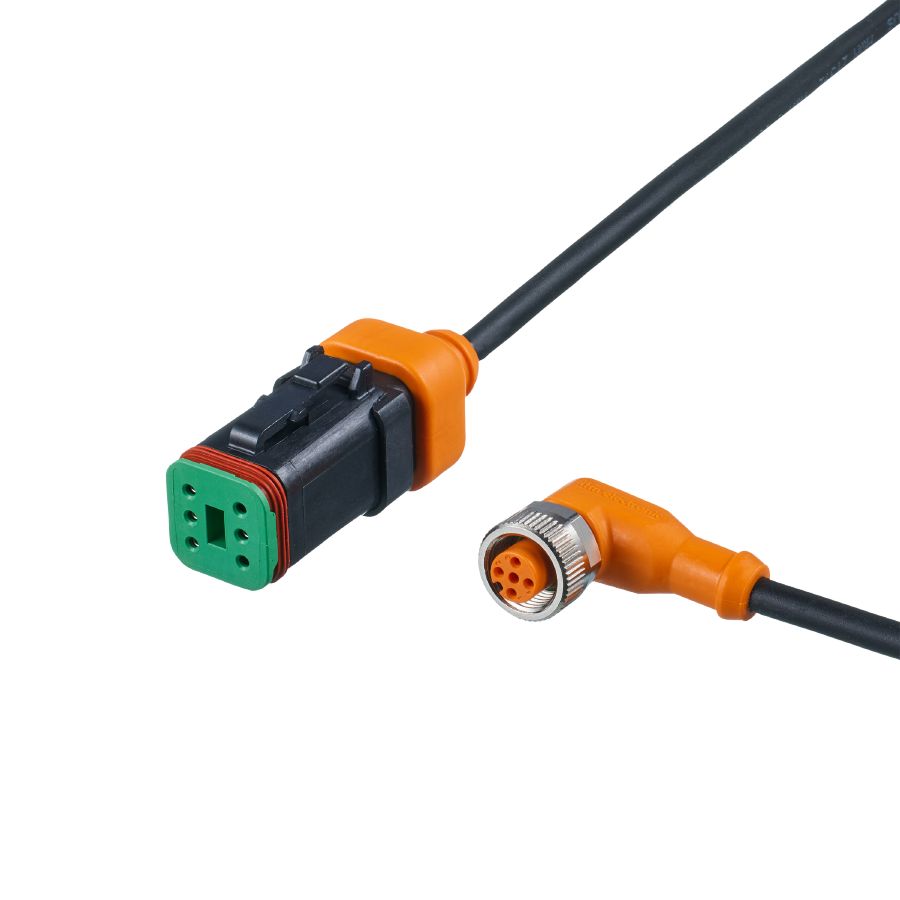

Connector: 1 x DEUTSCH connector, straight |
Electrical connection
| Connection |
Cable: 2 m, PUR, Halogen-free, black, Ø 5.4 mm; 4 x 0.50 mm² (28 x Ø 0.15 mm ) |
Electrical connection – socket
|
Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6…1.5 Nm |
