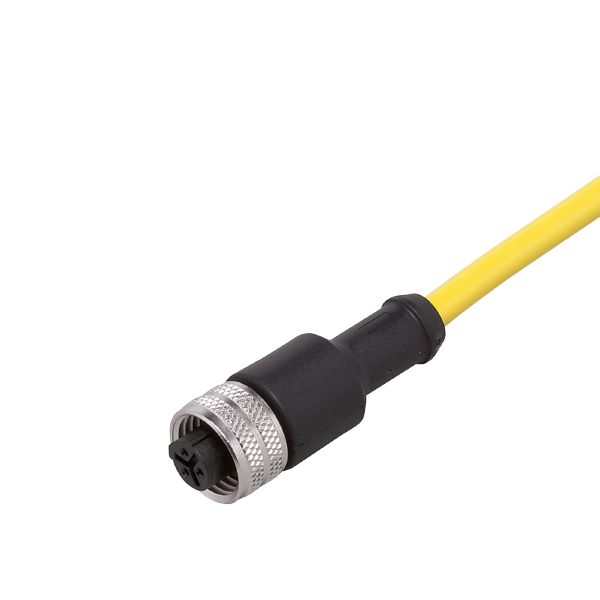

E12531

E12531

Gold-plated contacts for reliable electrical connections
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range

SKU: E12531

$2,880.00

Application

Special feature	Drag chain suitability

Electrical data

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4; (40° C)

Operating conditions

Ambient temperature [°C]	-25…90
Protection	IP 67

Mechanical data

Weight [g]

666

Dimensions [mm]

14.5 x 14.5 x 42.5

Materials

TPU

Moulded-body material

TPU

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	> 2 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 18 m, PVC, yellow, Ø 5.2 mm; 3 x (42 x Ø 0.1 mm ) / AWG 22

Electrical connection – socket

Connection	Connector: 1 x 1/2″, straight; coding: C; Moulded body: TPU; Locking: brass, nickel-plated

E12531

Datasheet
EN PDF
