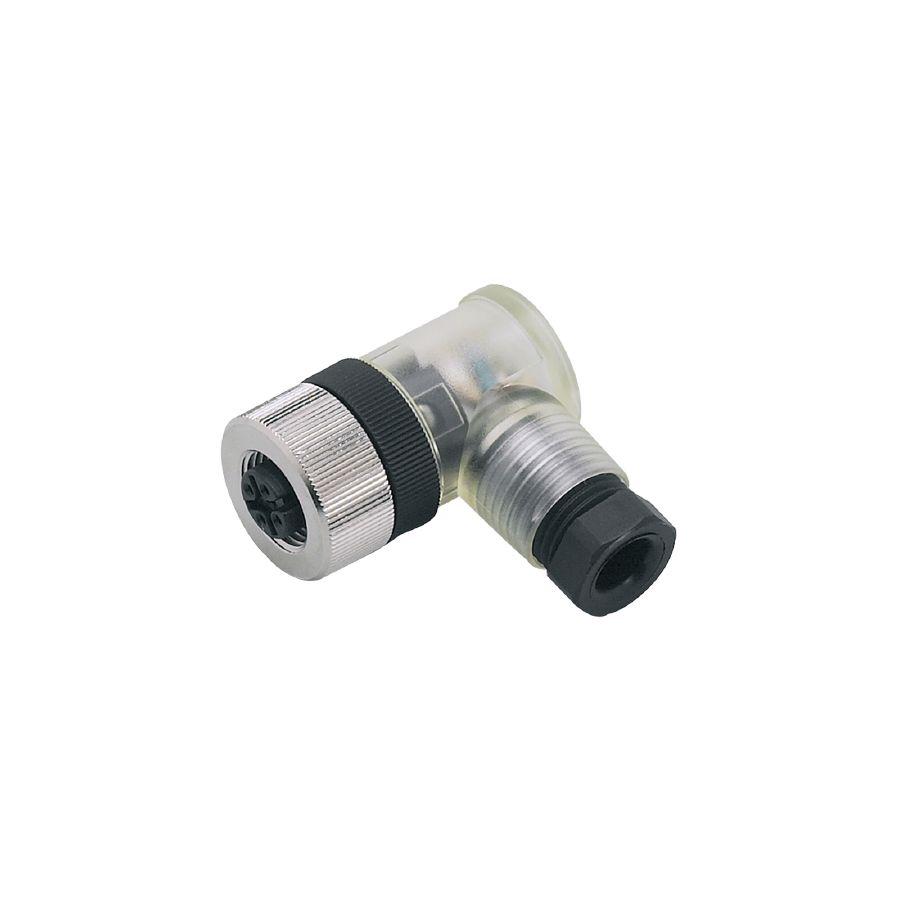

E11510

E11510

  • Angled type for use where space is restricted
  • Wide operating temperature range
  • Gold-plated contacts for reliable electrical connections
  • High protection rating for the requirements of harsh industrial environments
  • Clearly visible LEDs for indicating operation and switching status

SKU: E11510

$2,140.00

Add to Cart
Application
Special feature Free from silicone; Gold-plated contacts
Free from silicone yes
Electrical data
Operating voltage [V] 10…30 DC
Max. current load total [A] 4; (…40 °C)
Outputs
Electrical design PNP
Operating conditions
Ambient temperature [°C] -25…85
Protection IP 68
Mechanical data
Weight [g] 28.6
Dimensions [mm] 30 x 18 x 35
Materials PA
Moulded-body material PA
Material nut brass, nickel-plated
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Remarks
Pack quantity 1 pcs.
Electrical connection
screw terminals: …0.75 mm²; Cable sheath: Ø 4…6 mm
Electrical connection – socket
Connection Connector: 1 x M12, angled; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11510-00 — 06.03.2003 —

E11510-00_EN-US

Datasheet
EN PDF
