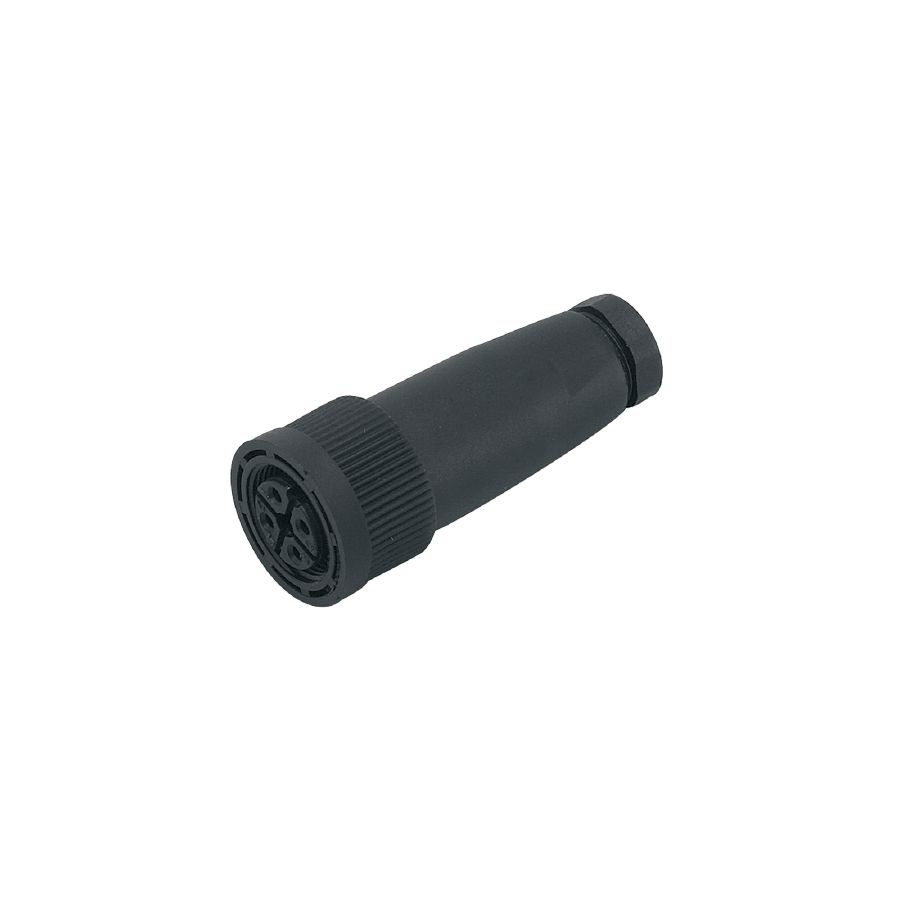

E1002A

Application

Application	connection to certified intrinsically safe circuits

Operating conditions

Ambient temperature [°C]	-20…80
Protection	IP 65

Tests / approvals

Mechanical data

Remarks

Ta according to table “Total power of the current circuits” in the corresponding operating instructions (safety-related part ATEX)

Several intrinsically safe circuits may be connected to the sockets.

The sum of the voltages of one or more intrinsically safe circuits must not exceed the following value:

Utotal max = 60 V (peak value)

Pack quantity

1 pcs.

Electrical connection

	terminals: …0.75 mm²; Cable sheath: Ø 6…8 mm

Electrical connection – socket

Connection	Connector: 1 x M18, straight; coding: A; Moulded body: PA; Locking: PA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — E1002A — 05.11.2020 —
