| Communication interface | IO-Link |
|---|---|
| Dimensions [mm] | 48 x 112 x 116 |
| Application | displaying and monitoring analogue signals; e.g. pressure sensors, temperature sensors or flow sensors |
|---|
| Frequency AC [Hz] | 50…60 |
|---|---|
| Operating voltage [V] | 115…230 AC / 18…30 DC |
| Current consumption [mA] | 100 |
| Power consumption [W] | 3 |
| Number of inputs and outputs | Number of analogue inputs: 2; Number of digital outputs: 4 |
|---|
| Number of analogue inputs | 2; (Spannungs- oder Stromeingang) |
|---|---|
| Analogue input (current) [mA] | 0…20 |
| Analogue input (voltage) [V] | -10…10 |
| Resolution of analogue input | 16 bit |
| Precision analogue input [%] | 0,1 |
| Number of digital outputs | 4 |
|---|---|
| Max. current load per output [mA] | 200 |
| Overload protection | yes |
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Required master port type | A |
| Min. process cycle time [ms] | 3 |
| Ambient temperature [°C] | -20…60 |
|---|---|
| Storage temperature [°C] | -25…70 |
| Protection | IP 65 |
| Protection rating terminals | IP 20 |
| EMC |
|
|---|
| Weight [g] | 369 |
|---|---|
| Type of mounting | panel cutout: 91 x 43 mm |
| Dimensions [mm] | 48 x 112 x 116 |
| Materials | Noryl UL94-V-0 |
| Display |
|
|---|

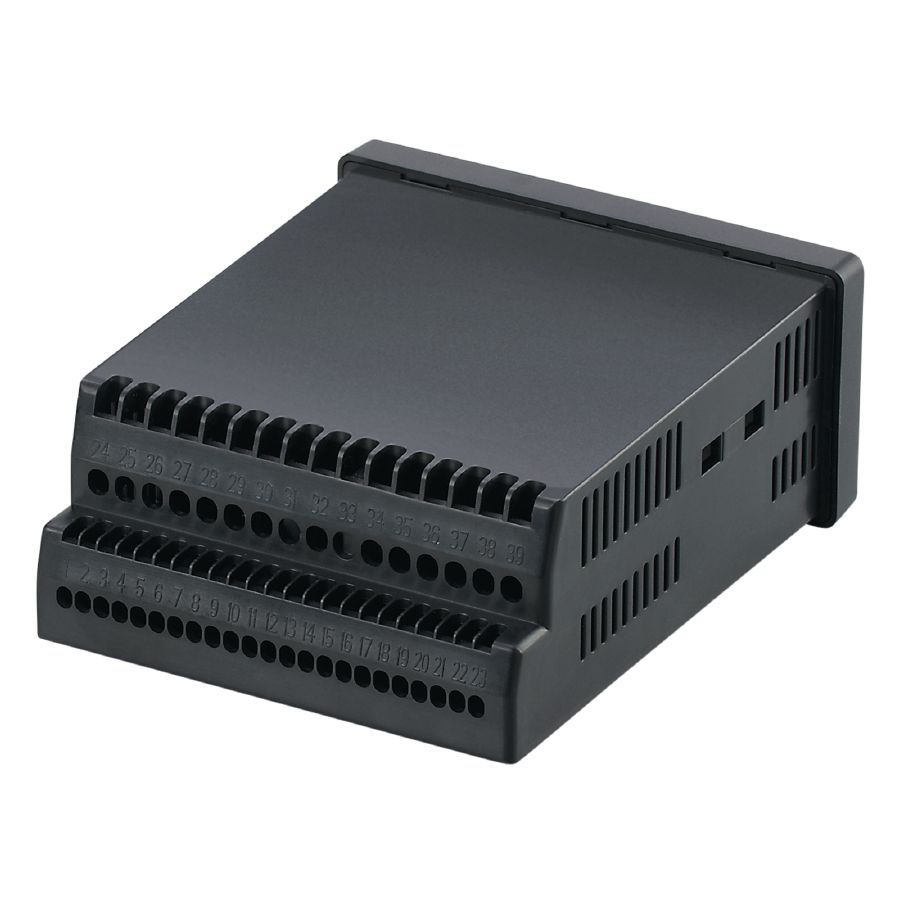

| Connection | screw terminals: |
|---|
