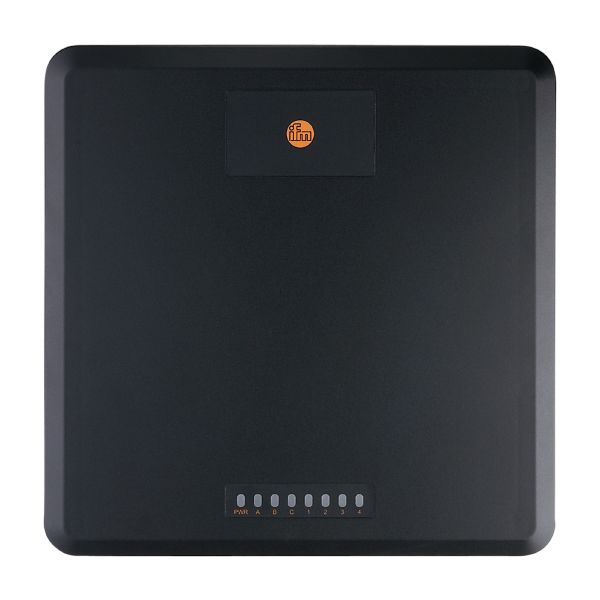

DTE930

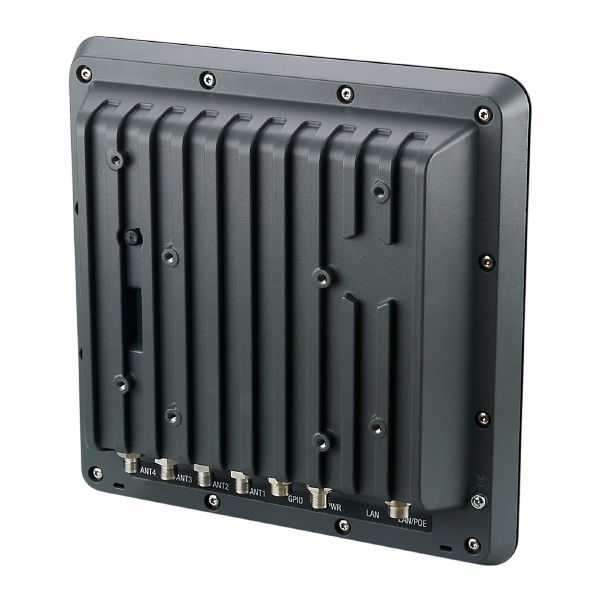

DTE930 - Image 2

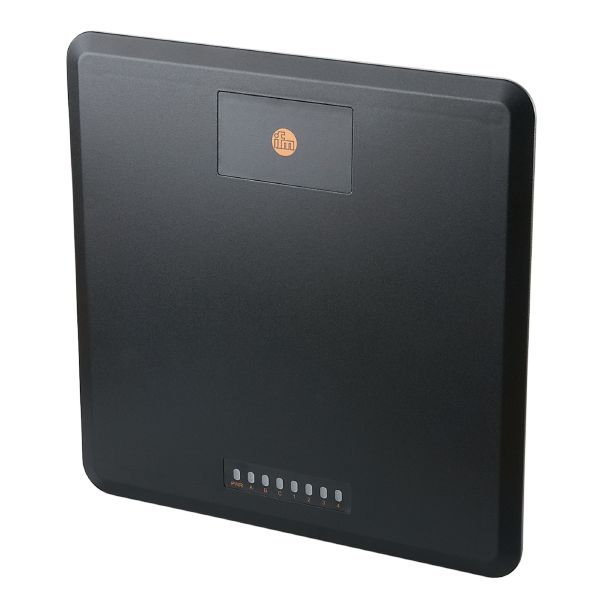

DTE930 - Image 3

DTE930

SKU: DTE930

$227,930.00

Application

Radio approval for	USA; Canada; Australia; Singapore; Malaysia; Indonesia; Mexico; South Africa

Electrical data

Operating voltage [V]	24 DC
Current consumption [mA]	700
Operating frequency [MHz]	902…928 (FCC), 920…926 (ACMA), 920…923 (SDPPI ) max. 400 mW EIRP, 919…923 (SIRIM), 920…925 (IMDA), 915,3…920,9 (ICASA)
Antenna connections	4; (TNC Reverse)
RFID standard	EPC Class1 GEN2/ISO 18000-6C
Transmission power ERP [mW]	2000; (parameterisable in steps: 1 dB 50mW … 2W)
Impedance [Ω]	50

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs	4

Outputs

Number of digital outputs	4
Max. current load per output [mA]	500; (max.)

Detection zone

RSSI threshold	adjustable via software

Interfaces

Communication interface	Ethernet

Ethernet – EtherNet/IP

Protocol	EtherNet/IP
Usage type	data transmission

Ethernet – TCP/IP

Protocol	TCP/IP
Usage type	parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-20…55
Storage temperature [°C]	-40…85
Protection	IP 67

Tests / approvals

Radio approval

FCC Part15

UL approval

Ta	-20…60 °C
Enclosure type	IP67
power supply	SELV
File number UL	E347020

Mechanical data

Weight [g]	3417.8
Dimensions [mm]	300 x 300 x 71
Materials	housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic

Displays / operating elements

Display

operation	1 x LED, yellow/green
	4 x LED, multi-colour programmable

Acoustic signal

buzzer

Remarks

Pack quantity	1 pcs.

Electrical connection – Ethernet

LAN	Connector: 1 x M12; coding: X

Electrical connection – inputs / outputs

GPIO	Connector: 1 x M12

Electrical connection – power supply

Power Supply	Connector: 1 x M12; coding: A
