Electrical data
| Operating voltage [V] |
19.2…28.8 DC |
| Current consumption [mA] |
500 |
| Power consumption [W] |
8.6 |
| Protection class |
III |
| Operating frequency [MHz] |
920,5…924,5 |
| RFID standard |
EPC Class1 GEN2/ISO 18000-63 |
| Transmission power EIRP [mW] |
200; (maximum: 250 mW) |
Outputs
| Max. current load per output [mA] |
100; (max.) |
Interfaces
| Communication interface |
Ethernet |
Ethernet – TCP/IP
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.79 |
| subnet mask: 255.255.255.0 |
| gateway IP address: 192.168.0.100 |
|
| Usage type |
parameter setting; data transmission |
Operating conditions
| Ambient temperature [°C] |
-20…55 |
| Note on ambient temperature |
| with mounting plate and cooling element: -20…60 °C |
|
| Storage temperature [°C] |
-25…80 |
| Protection |
IP 67 |
Tests / approvals
| Shock resistance |
| IEC 60028-2-27 |
40 g (6 ms) / bump |
|
50 g (11 ms) / single shock |
|
| Vibration resistance |
| EN 60068-2-6 |
2 g (10…150 Hz) |
|
Mechanical data
| Weight [g] |
691.15 |
| Dimensions [mm] |
113 x 118.6 x 50 |
| Materials |
housing: aluminium; PBT / PC; stainless steel |
Displays / operating elements
| Display |
| power supply |
1 x LED, green |
| LED bar display |
4 x LED, yellow signal strength ID tag |
| status |
2 x LED, green/red fieldbus interface |
| status |
2 x LED, green/yellow Ethernet |
|

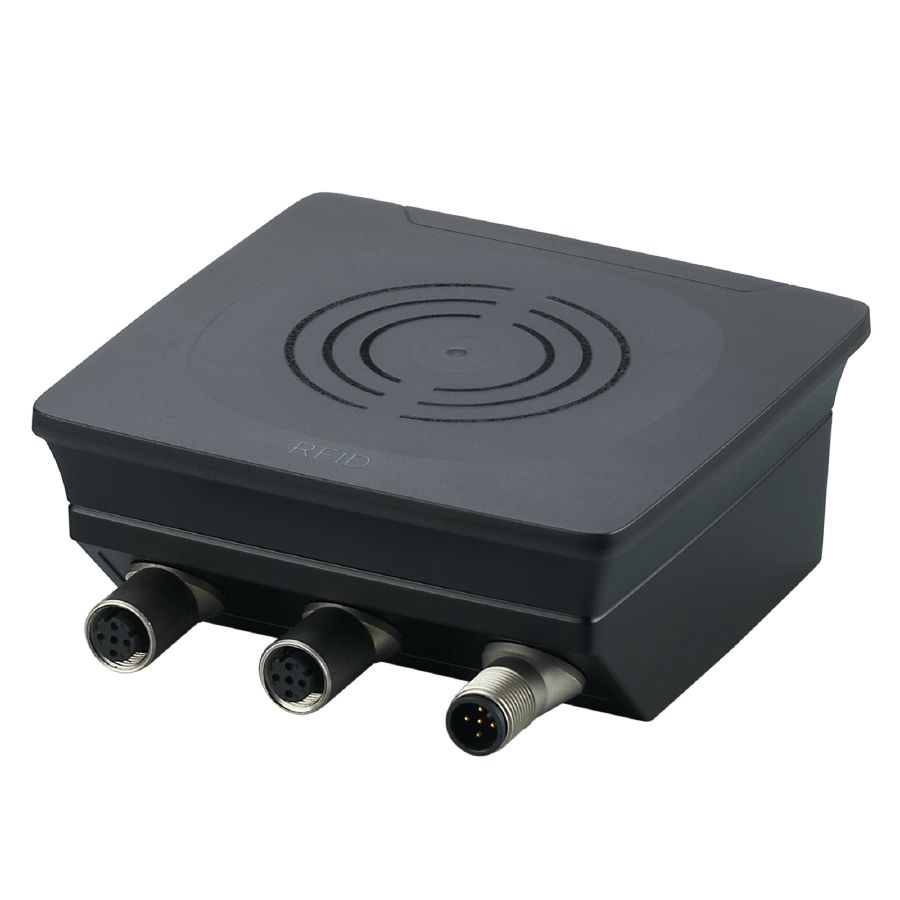

Electrical connection – Ethernet
| ETH1 / ETH2 |
Connector: 2 x M12; coding: D |
Electrical connection – power supply
| PWR |
Connector: 1 x M12; coding: A |
