| Radio approval for | EU/RED | |
|---|---|---|
| Note on radio approval |
|
| Operating voltage [V] | 24 DC |
|---|---|
| Current consumption [mA] | 700 |
| Operating frequency [MHz] | 865…868 (ETSI) |

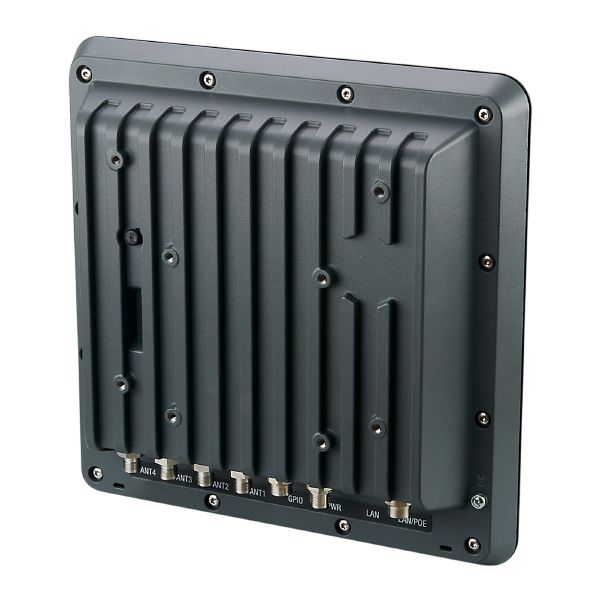

| Antenna connections | 4; (TNC Reverse) |
| RFID standard | EPC Class1 GEN2/ISO 18000-6C |
| Transmission power ERP [mW] | 2000; (parameterisable in steps: 1 dB 50mW … 2W) |
| Impedance [Ω] | 50 |
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
|---|
| Number of digital inputs | 4 |
|---|
| Number of digital outputs | 4 |
|---|---|
| Max. current load per output [mA] | 500; (max.) |
| RSSI threshold | adjustable via software |
|---|
| Communication interface | Ethernet |
|---|
| Protocol | EtherNet/IP |
|---|---|
| Usage type | data transmission |
| Protocol | TCP/IP |
|---|---|
| Usage type | parameter setting; data transmission |
| Ambient temperature [°C] | -20…55 |
|---|---|
| Storage temperature [°C] | -40…85 |
| Protection | IP 67 |
| Radio approval | EN 302 208 |
|---|
| Weight [g] | 3354 |
|---|---|
| Dimensions [mm] | 300 x 300 x 71 |
| Materials | housing: aluminium; Protective cover: plastics; TNC socket: brass / PTFE; connector: brass / plastic |
| Display |
|
||||
|---|---|---|---|---|---|
| Acoustic signal | buzzer |
| Pack quantity | 1 pcs. |
|---|
| LAN | Connector: 1 x M12; coding: X |
|---|
| GPIO | Connector: 1 x M12 |
|---|
| Power Supply | Connector: 1 x M12; coding: A |
|---|
